| SKU:
KSU20526-2B

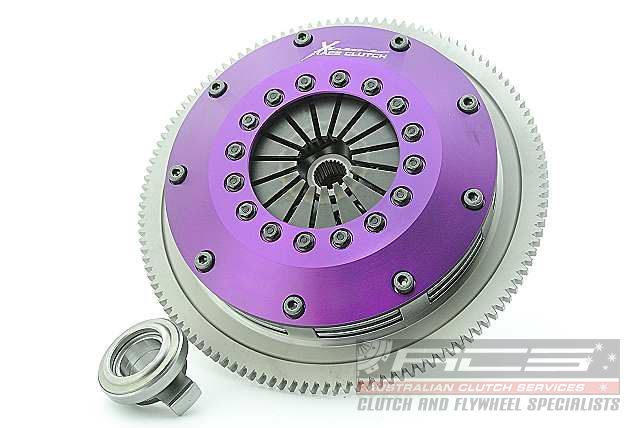

Xtreme 200mm Twin Plate Sprung Ceramic Clutch Kit incl. Flywheel
Subaru BRZ 12+/Toyota 86, GR86 12+
-
International Shipping
We ship Worldwide
-
AUSSIE OWNED
-
FAST DISPATCH
-
WE PRICE MATCH
-
FLAT RATE SHIPPING
Description
Description
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.
Sprung Ceramic Twin Plate - 2B
The twin plate sprung ceramic clutch kits are engineered for motorsport use, where increased heat and torque capacity are essential. Featuring a sprung hub design, these discs help minimize shock loading and are ideal in track cars that still run the factory transmission.
Recommended for: Recommended for Track (Motorsport) focused cars, or those who want the motorsport feel.
Notes:
- This clutch kit includes a Flywheel
Features and Benefits
Features and Benefits
- Twin friction discs for increased torque capacity
- Sprung ceramic friction discs for improved torque capacity, heat resistance and great driveability
- Ideal for street use in very high horsepower street & motorsport applications
- Includes all necessary components for easy installation
Technical Specifications
Technical Specifications
- Flywheel Step (mm) +2.2mm
- Clutch Disc Diameter (mm) 200mm
- Clutch Disc Spline Count 24
- Clutch Disc Spline Diameter (mm) 25.2mm
- Disc Type Sprung
- Friction Material Ceramic
- Multiplate Twin
- Recommended Use Track
- Torque (Nm / ftlbs) Inc FOS 1200 / 890
- Spigot Bush/Bearing Included Yes
- Aligning Tool Included Yes
- Flywheel Included Single Mass
- Flywheel Bolts Included Yes
- Pressure Plate Bolts Included Yes
- Spline Grease Included YeS
- Weight (kg) 15.0 kg
