 |  SKU: KMZ20680-2B

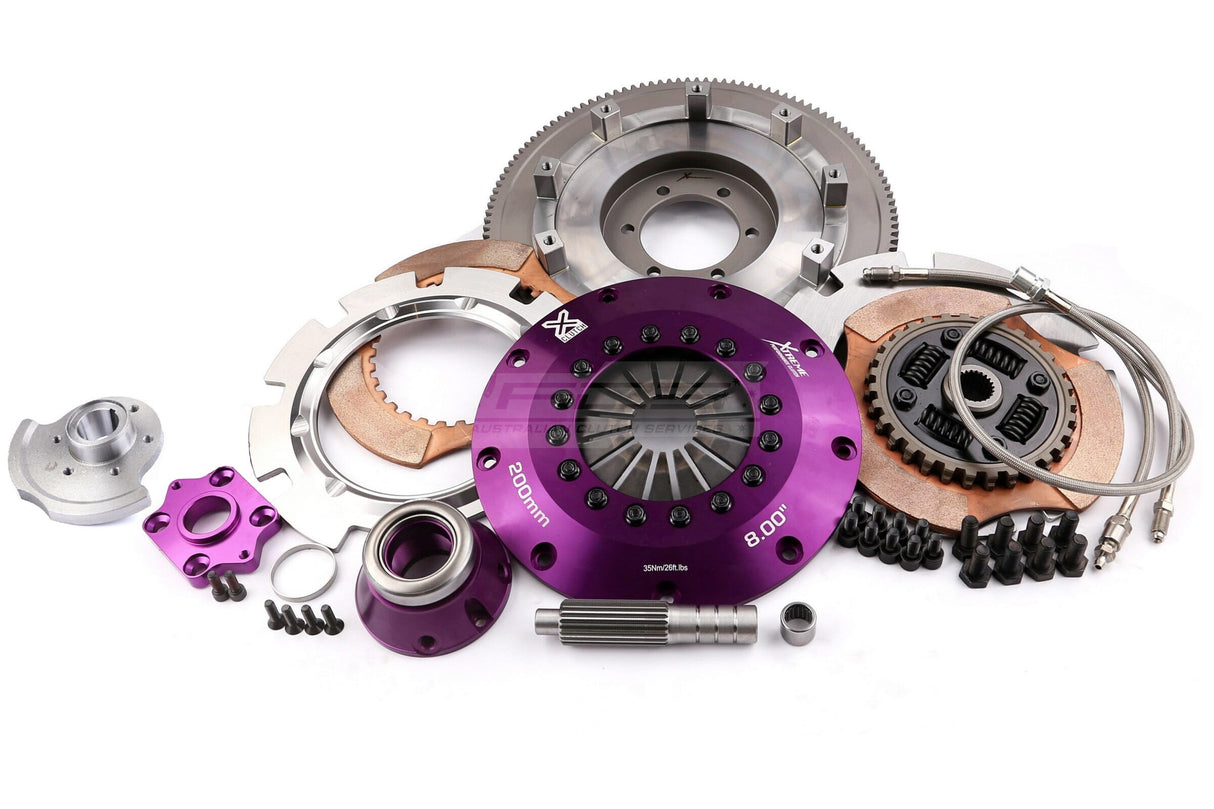

Xtreme 200mm Twin Plate Sprung Ceramic Clutch Kit

Mazda RX-7 FD 13B-REW 1.3L 92-02
$3,879.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Sprung Ceramic Twin Plate - 2B

The twin plate sprung ceramic clutch kits are engineered for motorsport use, where increased heat and torque capacity are essential. Featuring a sprung hub design, these discs help minimize shock loading and are ideal in track cars that still run the factory transmission.

Recommended for: Recommended for Track (Motorsport) focused cars, or those who want the motorsport feel.

Features and Benefits

  • Twin friction discs for increased torque capacity
  • Sprung ceramic friction discs for improved torque capacity, heat resistance and great driveability
  • Ideal for street use in very high horsepower street & motorsport applications
  • Includes all necessary components for easy installation

Technical Specifications

  • Clutch Spline Count: 23
  • Clutch Disc Spline Profile: 26.0x23T
  • Pilot Bearing Included: Yes
  • Flywheel Included: Single-mass Flywheel Conversion
  • Concentric Slave Cylinder Included: Yes
  • Spline Grease Included: Yes
  • Clutch Type: High-Performance Clutch
  • Screw Set Included: Yes
  • Flywheel Step (mm): 2.2
  • Max Recommended Engine Torque (Nm): 1200
  • Clutch Disc Diameter (mm): 200
  • Flywheel Profile: Elevated Flywheel
  • Friction Material: Ceramic

Included Components

  • Xtreme 184mm Twin Plate Sprung Ceramic Clutch Disc
  • Xtreme Clutch Pressure Plate

Fitment Table
