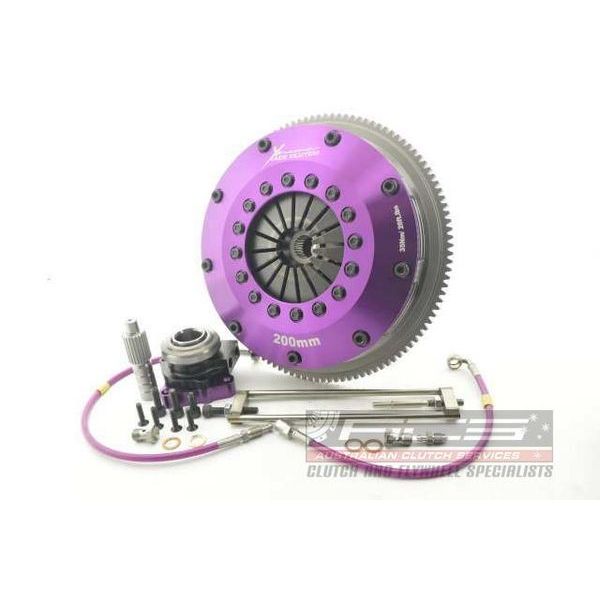

Xtreme 200mm Twin Plate Sprung Ceramic Clutch Kit - Pull to Push Hydraulic Conversion

Mitsubishi Evo 4-9 (5MT)
$3,469.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Multi-Plate - 200mm Sprung Motorsport Kits

Recommended for: Very High Horsepower Street & Motorsport Applications

Xtreme Clutch offers a wide range of multi-plate performance kits including everything from twin & triple plate organic upgrades for very high-performance road applications to 184mm quad-plate racing kits for 1000+ HP Time Attack cars. The Xtreme 200mm Sprung Race Clutch is designed for street and track use offering exceptional performance in a variety of applications.

Vehicle Fitment:

  • Mitsubishi Lancer Evolution 4-9 (5MT)

Technical Specifications

  • Flywheel Step (mm): +2.2
  • Clutch Disc Diameter (mm): 200
  • Clutch Disc Spline Count: 23
  • Clutch Disc Spline Diameter (mm): 26.0
  • Disc Type: Sprung
  • Friction Material: Ceramic
  • Multiplate: Twin
  • Recommended Use: Track
  • Torque (Nm) Inc FOS: 1200
  • Torque (ftlbs) Inc FOS: 890
  • Aligning Tool Included: Yes
  • Concentric Slave Cylinder Included: Yes
  • Pressure Plate Bolts Included: Yes
  • Spline Grease Included: Yes
  • Weight (kg): 15.0
  • Note: Conversion to Hydraulic Push Type

Included Components

  • Clutch Discs
  • Intermediate Plates
  • Pressure Plate
  • Concentric Slave Cylinder (Pull to Push Hydraulic Conversion)
  • Flywheel
