 |  SKU: KFD23660-3G

Xtreme 230mm Triple Plate Solid Organic Clutch Kit incl. Flywheel & CSC

Ford Falcon XR6T BA, BF/XR6, G6E FG 9 (6MT)
$4,069.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Solid Organic Triple Plate - 3G

Solid Organic Triple Plate clutch kits are designed for ultra high horsepower vehicles that require an extremely high torque capacity. The unsprung (solid) clutch disc allows for instantaneous clutch engagement, delivering power to the transmission immediately which is ideal in motorsport applications. The engagement point more aggressive than their sprung counterparts, meaning they are a lot more challenging to use in street vehicles.

Recommended for: Track (Motorsport) focused cars with extreme modiications

Notes:

  • This clutch kit includes a Flywheel and Concentric Slave Cylinder (CSC)

Features and Benefits

  • Triple friction discs for increased torque capacity
  • Sprung organic friction discs for improved torque capacity, heat resistance and great driveability
  • Ideal for street use in Track (Motorsport) focused cars with extreme modiications
  • Includes all necessary components for easy installation

Technical Specifications

  • Clutch Spline Count: 23
  • Clutch Disc Spline Profile: 25.4x23T
  • Pilot Bearing Included: Yes
  • Concentric Slave Cylinder Included: Yes
  • Spline Grease Included: Yes
  • Clutch Type: High-Performance Clutch
  • Flywheel Included: Yes
  • Screw Set Included: Yes
  • Flywheel Step (mm): 3.8
  • Max Recommended Engine Torque (Nm): 1820
  • Clutch Disc Diameter (mm): 230
  • Flywheel Profile: Elevated Flywheel
  • Friction Material: Organic

    •

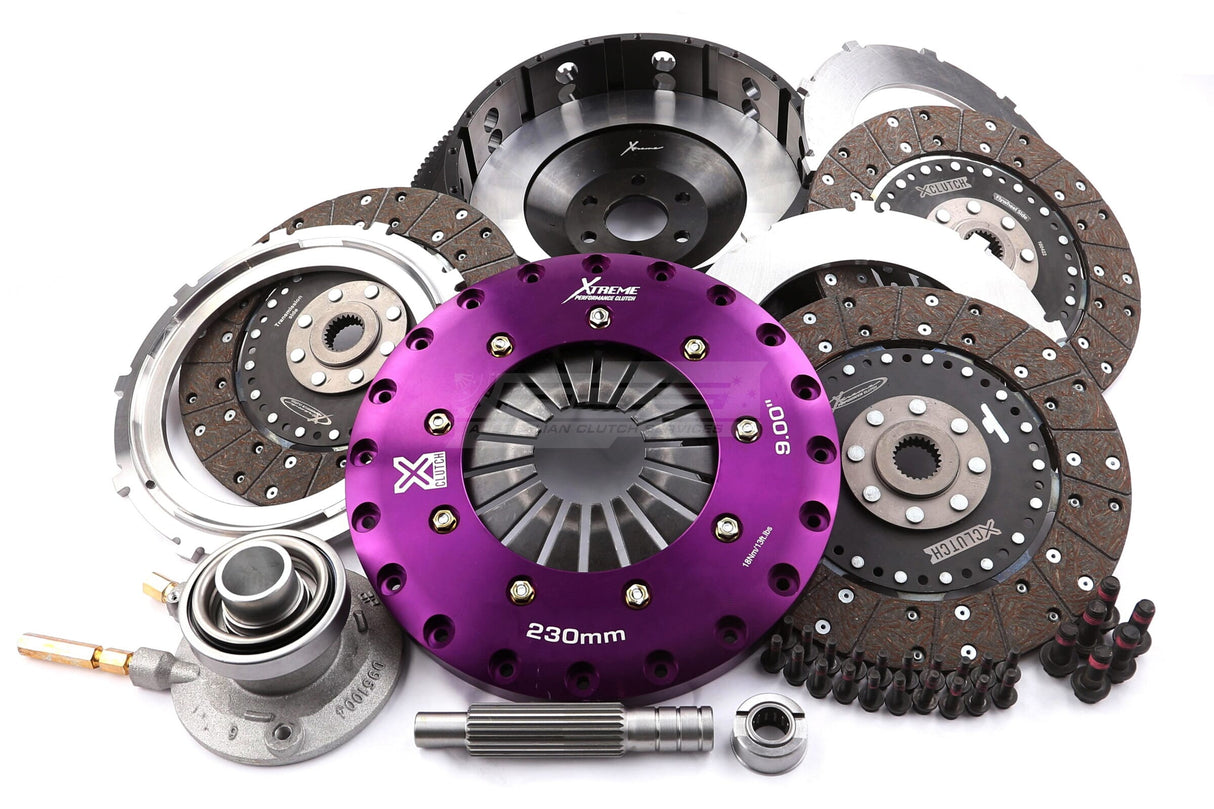

    Included Components

    • Xtreme 230mm Triple Plate Solid Organic Clutch Disc
    • Xtreme Clutch Pressure Plate
    • Xtreme Clutch Flywheel
    • Concentric Slave Cylinder

    Fitment Table
