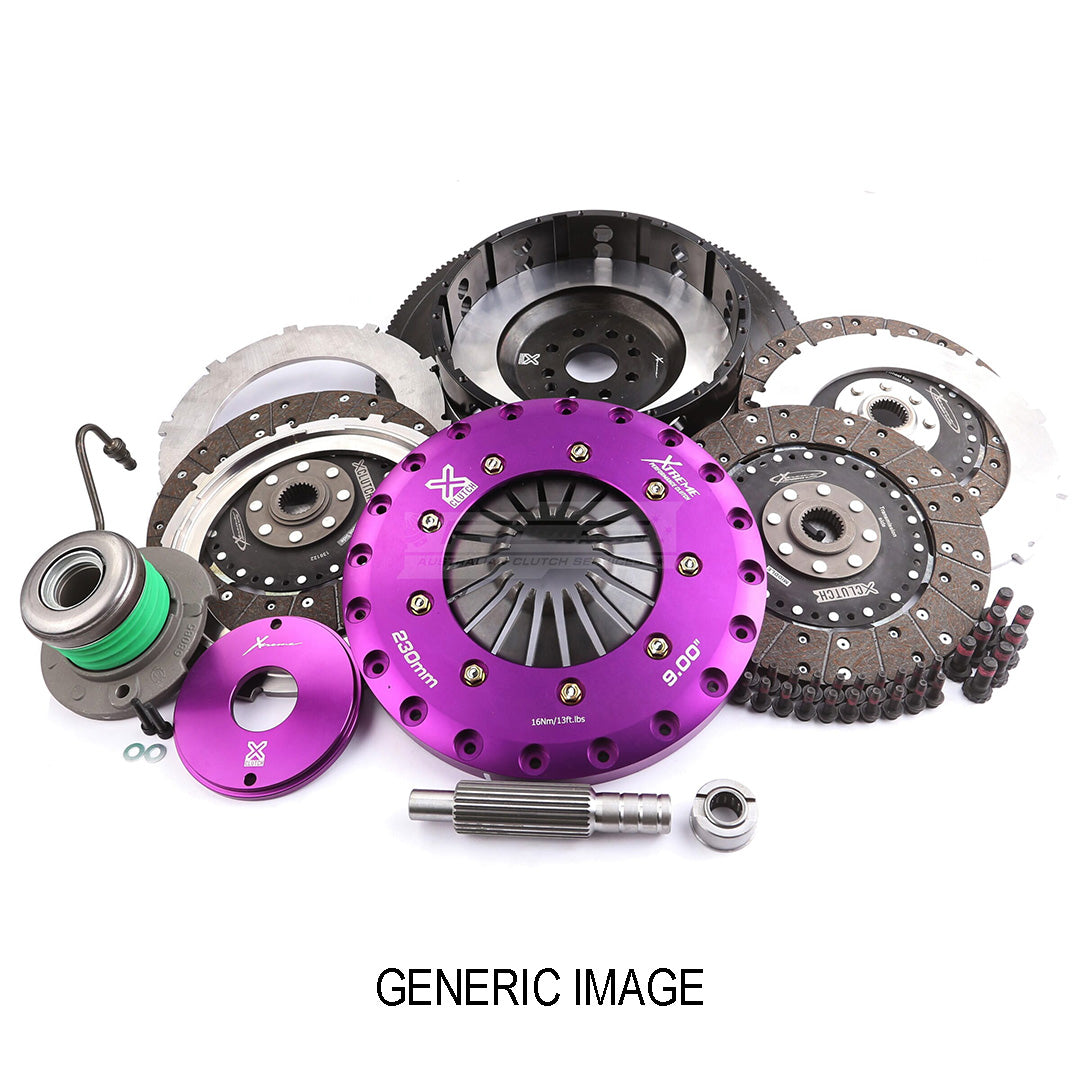

Xtreme 230mm Triple Plate Solid Organic Clutch Kit incl. Flywheel & CSC

Holden Commodore/HSV VT-VZ LS1, LS2
$3,449.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.



Solid Organic Triple Plate - 3G

Solid Organic Triple Plate clutch kits are designed for ultra high horsepower vehicles that require an extremely high torque capacity. The unsprung (solid) clutch disc allows for instantaneous clutch engagement, delivering power to the transmission immediately which is ideal in motorsport applications. The engagement point more aggressive than their sprung counterparts, meaning they are a lot more challenging to use in street vehicles.



Recommended for: Track (Motorsport) focused cars with extreme modifications

Features and Benefits

  • Triple friction discs for increased torque capacity
  • Sprung organic friction discs for improved torque capacity, heat resistance and great driveability
  • Ideal for street use in Track (Motorsport) focused cars with extreme modiications
  • Includes all necessary components for easy installation

Technical Specifications

  • Number of Teeth: 26
  • Hub Profile: 28.6x26T
  • Supplementary Article/Supplementary Info: with pilot bearing
  • Supplementary Article/Supplementary Info: with single-mass flywheel
  • Supplementary Article/Supplementary Info: with central slave cylinder
  • Supplementary Article/Supplementary Info: with synthetic grease
  • Supplementary Article/Info 2: With screw set
  • for flywheel depth [mm]: 3.8
  • Max. transferable engine torque [Nm]: 1820
  • Friction Lining Outer Diameter [mm]: 230
  • Flywheel Profile: elevated flywheel
  • Friction lining material: Organic

Included Components

  • Xtreme 230mm Triple Plate Solid Organic Clutch Disc
  • Xtreme Heavy Duty Clutch Cover
  • Xtreme Clutch Flywheel
  • Xtreme Clutch Concentric Slave Cylinder

    • Fitment Table
