 |  SKU: KSU23540-2E

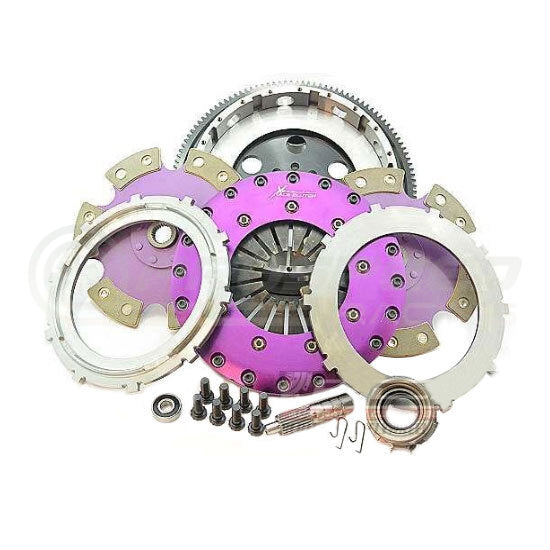

Xtreme 230mm Twin Plate Solid Ceramic Clutch Kit

Subaru BRZ/Toyota 86
$2,679.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Multi-Plate - 230mm Motorsport Kits

Recommended for: Very High Horsepower Street & Motorsport Applications

Xtreme Clutch offers a wide range of multi-plate performance kits including everything from twin & triple plate organic upgrades for very high-performance road applications to 184mm quad-plate racing kits for 1000+ HP Time Attack cars. The Xtreme Clutch 230mm Race Clutch is available with either ceramic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.

Vehicle Fitment:

  • 2012-2021 Subaru BRZ
  • 2012-2021 Toyota 86

Technical Specifications

Flywheel Step (mm) +3.8
Clutch Disc Diameter (mm) 230
Clutch Disc Spline Count 24
Clutch Disc Spline Diameter (mm) 25.2
Disc Type Solid
Friction Material Ceramic
Multiplate Twin
Recommended Use Track
Torque (Nm) Inc FOS 1830
Torque (ftlbs) Inc FOS 1350
Spigot Bush/Bearing Included Yes
Aligning Tool Included Yes
Flywheel Included Single Mass
Flywheel Bolts Included Yes
Pressure Plate Bolts Included Yes
Spline Grease Included Yes
Transport Weight (kg) 15.5

Fitment Table
