 |  SKU: KNI23688-2G

Xtreme 230mm Twin Plate Solid Organic Clutch Kit incl. SMF & CSC

Nissan 350Z VQ35HR/370Z/Skyline 370GT V36
$3,419.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.



Solid Organic Twin Plate - 2G

Solid Organic Twin Plate clutch kits are designed for high horsepower track vehicles. The unsprung (solid) clutch disc allows for instantaneous clutch engagement, delivering power to the transmission immediately which is ideal in motorsport applications. The engagement point more aggressive than the sprung (2A) counterparts, meaning they are a lot more challenging to use in street vehicles.



Recommended for: Track (Motorsport) focused cars



Notes:

  • This clutch kit includes a Single Mass Flywheel (SMF) and Concentric Slave Cylinder (CSC)

Features and Benefits

  • Twin friction discs for increased torque capacity
  • Sprung oganic friction discs for improved torque capacity and great driveability
  • Ideal for street use in very high horsepower street & motorsport applications
  • Includes all necessary components for easy installation

Technical Specifications

  • Flywheel Step (mm)    Flat
  • Clutch Disc Diameter (mm)    230
  • Clutch Disc Spline Count    24
  • Clutch Disc Spline Diameter (mm)    25.4
  • Disc Type    Solid
  • Friction Material    Organic
  • Multiplate    Twin
  • Recommended Use    Performance Street
  • Torque (Nm) Inc FOS    1200
  • Torque (ftlbs) Inc FOS    890
  • Spigot Bush/Bearing Included    Yes
  • Aligning Tool Included    Yes
  • Flywheel Included    Single Mass
  • Flywheel Bolts Included    Yes
  • Concentric Slave Cylinder Included    Yes
  • Pressure Plate Bolts Included    Yes
  • Spline Grease Included    Yes
  • Note 1    Includes Clutch Lines
  • Transport Weight (kg)    15.5
  • Excellent driveability in high power street applications
  • Increased torque capacity
  • Rigid organic friction discs
  • Kit includes flywheel and concentric slave cylinder

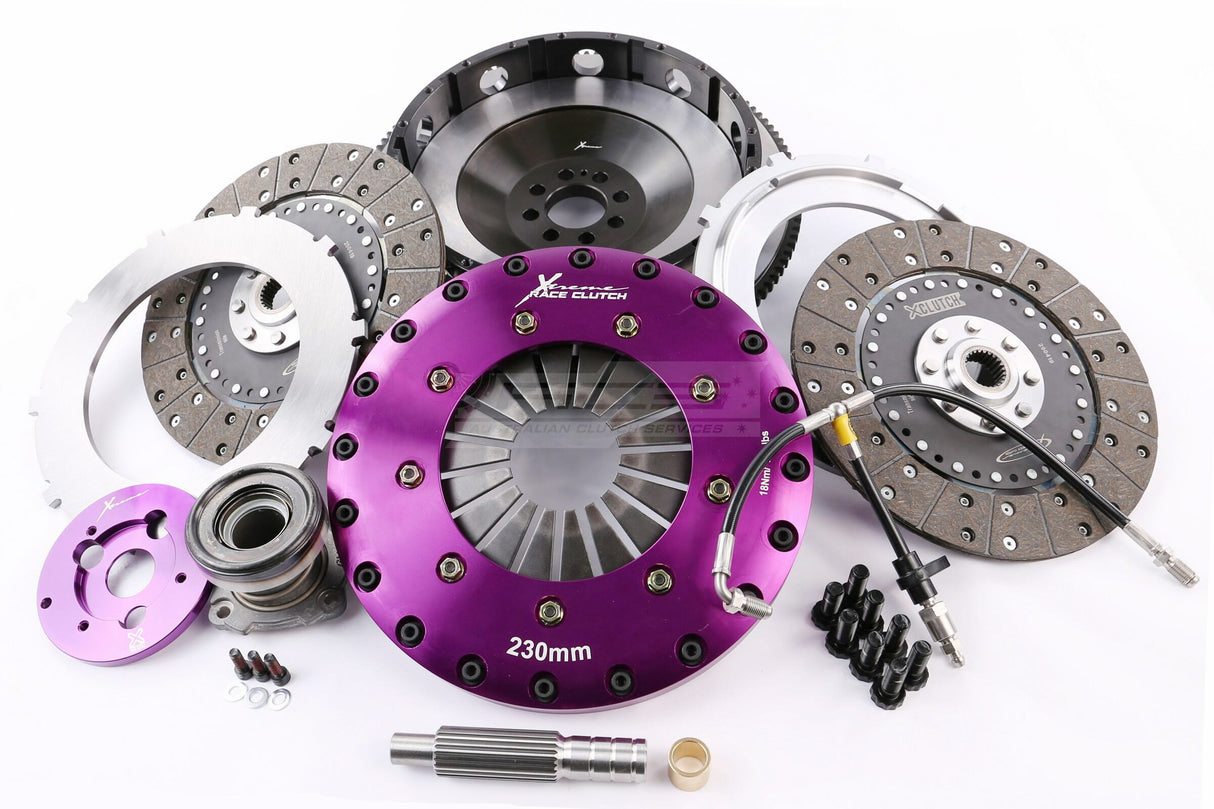

Included Components

  • Xtreme 230mm Twin Plate Solid Organic Clutch Disc
  • Xtreme Heavy Duty Clutch Cover
  • Xtreme Clutch Single Mass Flywheel
  • Xtreme Clutch Concentric Slave Cylinder

    • Fitment Table
