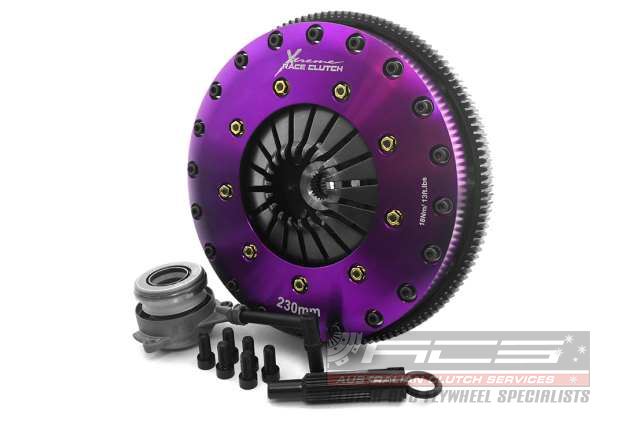

Xtreme 230mm Twin Plate Sprung Organic Clutch Kit incl. SMF & CSC

Audi A3 8P 2.0TFSI/VW Golf Gti Mk5, Mk6/Golf R Mk6
$3,319.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.



Sprung Organic Twin Plate - 2A

Engineered for high-power street and track machines, these sprung organic clutch kits provide excellent drivability while still handling serious power. The sprung disc design enhances shock absorption, helping to protect the transmission from harsh engagement forces. The organic friction material optimises pedal feel and reliability on the street, delivering smoother performance than their ceramic counterparts.



Recommended for: Very High Horsepower Street & Motorsport Applications



Notes:

  • This clutch kit includes a Single Mass Flywheel (SMF) and Concentric Slave Cylinder (CSC)

Features and Benefits

  • Twin friction discs for increased torque capacity
  • Sprung organic friction discs for improved drivability
  • Ideal for street use in very high horsepower street & motorsport applications
  • Includes all necessary components for easy installation

Technical Specifications

  • Number of Teeth: 23
  • Hub Profile: 24.7x23T
  • Supplementary Article/Supplementary Info: with single-mass flywheel
  • Supplementary Article/Supplementary Info: with central slave cylinder
  • Supplementary Article/Supplementary Info: with synthetic grease
  • Clutch Type: High-Performance Clutch
  • Supplementary Article/Info 2: With screw set
  • for flywheel depth [mm]: 3.8
  • Max. transferable engine torque [Nm]: 1000
  • Friction Lining Outer Diameter [mm]: 230
  • Flywheel Profile: elevated flywheel
  • Friction lining material: Organic

    •

    Included Components

  • Xtreme 230mm Twin Plate Sprung Organic Clutch Disc
  • Xtreme Heavy Duty Clutch Cover
  • Xtreme Clutch Single Mass Flywheel
  • Xtreme Clutch Concentric Slave Cylinder

    • Fitment Table
