 |  SKU: KMZ23530-2A

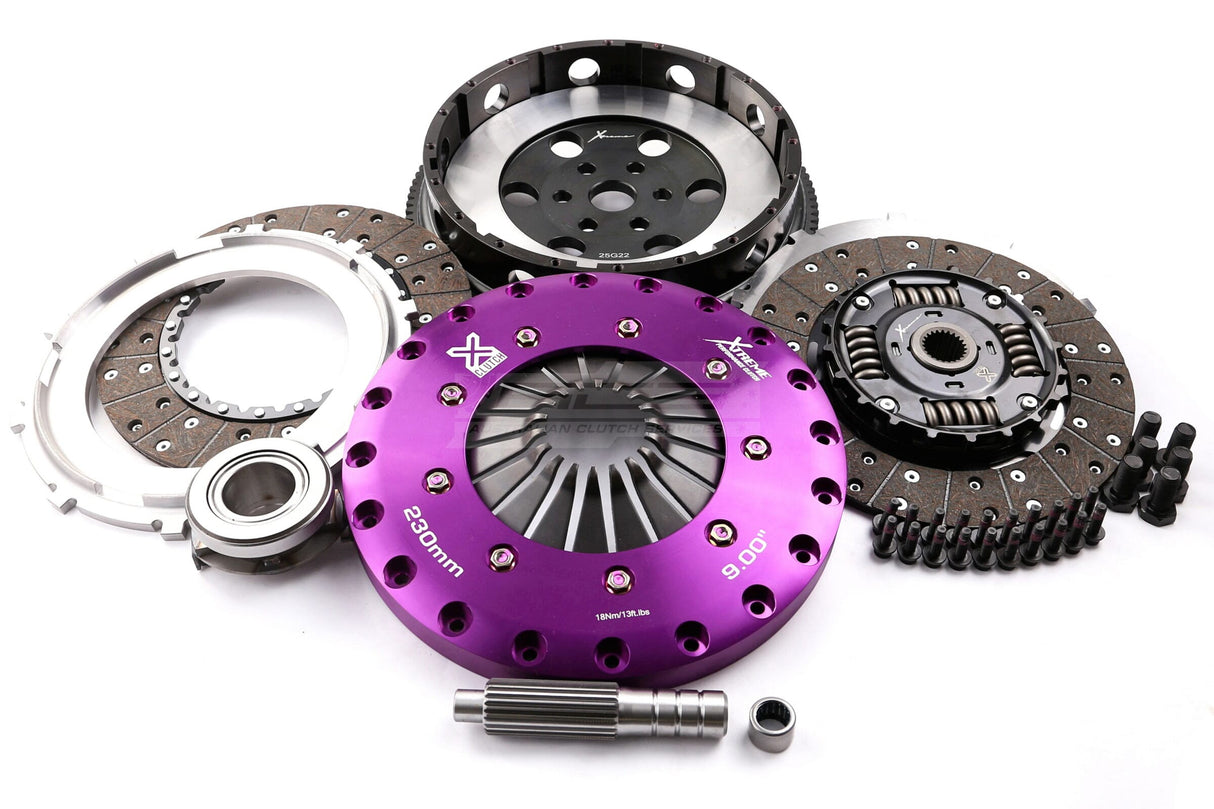

Xtreme 230mm Twin Plate Sprung Organic Clutch Kit incl. SMF

Mazda 3 MPS BK, BL/6 MPS GG L3VDT 2.3L 06-14
$3,189.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Sprung Organic Twin Plate - 2A

Engineered for high-power street and track machines, these sprung organic clutch kits provide excellent drivability while still handling serious power. The sprung disc design enhances shock absorption, helping to protect the transmission from harsh engagement forces. The organic friction material optimises pedal feel and reliability on the street, delivering smoother performance than their ceramic counterparts.

Recommended for: Very High Horsepower Street & Motorsport Applications

Notes:

  • This clutch kit includes a Single Mass Flywheel (SMF)

Features and Benefits

  • Twin friction discs for increased torque capacity
  • Sprung organic friction discs for improved drivability
  • Ideal for street use in very high horsepower street & motorsport applications
  • Includes all necessary components for easy installation

Technical Specifications

  • Clutch Spline Count: 23
  • Clutch Disc Spline Profile: 26.3x23T
  • Pilot Bearing Included: Yes
  • Flywheel Included: Single Mass
  • Spline Grease Included: Yes
  • Flywheel Included: Dual-mass to Single-mass Conversion
  • Clutch Type: High-Performance Clutch
  • Screw Set Included: Yes
  • Flywheel Step (mm): 3.8
  • Max Recommended Engine Torque (Nm): 1000
  • Clutch Disc Diameter (mm): 230
  • Flywheel Profile: Elevated Flywheel
  • Friction Material: Organic

    •

    Included Components

    • Xtreme 230mm Twin Plate Sprung Organic Clutch Disc
    • Xtreme Clutch Pressure Plate
    • Xtreme Clutch Single Mass Flywheel

    Fitment Table
