 |  SKU: KFD27633-2G

Xtreme 270mm Twin Plate Solid Organic Clutch Kit incl. Flywheel & CSC

Ford Falcon XR6 Turbo/FPV F6, F6E FG 08-14
$2,899.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Solid Organic Twin Plate - 2G

Solid Organic Twin Plate clutch kits are designed for high horsepower track vehicles. The unsprung (solid) clutch disc allows for instantaneous clutch engagement, delivering power to the transmission immediately which is ideal in motorsport applications. The engagement point more aggressive than the sprung (2A) counterparts, meaning they are a lot more challenging to use in street vehicles.

Recommended for: Track (Motorsport) focused cars

Notes:

  • This clutch kit includes a Flywheel and Concentric Slave Cylinder (CSC)

Features and Benefits

  • Twin friction discs for increased torque capacity
  • Sprung oganic friction discs for improved torque capacity and great driveability
  • Ideal for street use in very high horsepower street & motorsport applications
  • Includes all necessary components for easy installation

Technical Specifications

  • Flywheel Step (mm): Flat
  • Clutch Disc Diameter (mm): 270mm
  • Clutch Disc Spline Count: 23
  • Clutch Disc Spline Diameter (mm): 26.0mm
  • Disc Type: Solid
  • Friction Material: Organic
  • Multiplate: Twin
  • Recommended Use: Performance Street
  • Torque (Nm / ftlbs) Inc FOS: 1300 / 960
  • Spigot Bush/Bearing Included: Yes
  • Aligning Tool Included: Yes
  • Flywheel Included: Single Mass
  • Flywheel Bolts Included: Yes
  • Concentric Slave Cylinder Included: Yes
  • Pressure Plate Bolts Included: Yes
  • Spline Grease Included: Yes
  • Weight (kg): 27.5 kg

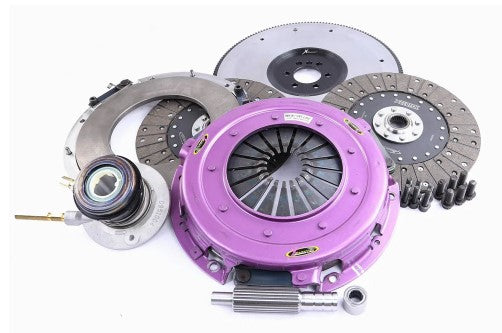

Included Components

  • Xtreme 230mm Twin Plate Solid Organic Clutch Disc
  • Xtreme Clutch Pressure Plate
  • Xtreme Clutch Flywheel
  • Concentric Slave Cylinder

Fitment Table
