 |  SKU: KSU23012-1CX

Xtreme Extra Heavy Duty Cushioned Ceramic Clutch Kit

Subaru BRZ 12+/Toyota 86, GR86 12+
$1,259.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.



Cushioned Ceramic - 1C

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. Extra Heavy Duty Clutch Kits offer an increased clamp load over standard 1C kits, recommended for higher powered vehicles. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.



Recommended for: Track (Motorsport) focused cars that are also occassionally used on the public roads.

Features and Benefits

  • Heavy-duty pressure plate with 30-60% increased clamping force (depending on application)
  • Cushioned ceramic friction disc for improved torque capacity, heat resistance and great driveability
  • Ideal for track focused vehicles that may see occassional road use
  • Includes all necessary components for easy installation

Technical Specifications

  • Flywheel Step (mm) -2.0mm
  • Clutch Disc Diameter (mm) 230mm
  • Clutch Disc Spline Count 24
  • Clutch Disc Spline Diameter (mm) 25.2mm
  • Disc Type Sprung
  • Friction Material Ceramic
  • Stage 2
  • Recommended Use Performance Street
  • Clamping Force % Increase 25%
  • Torque (Nm / ftlbs) Inc FOS 540 / 400
  • Spigot Bush/Bearing Included Yes
  • Aligning Tool Included Yes
  • Spline Grease Included Yes
  • Weight (kg) 7.9 kg

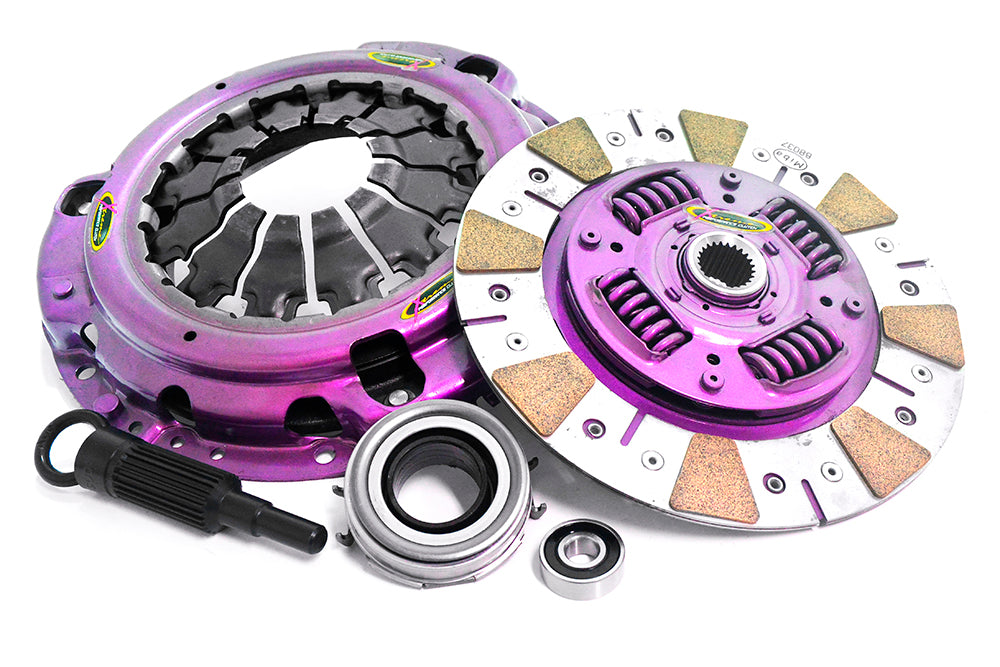

Included Components

  • Xtreme Heavy Duty Cushioned Ceramic Clutch Disc
  • Xtreme Extra Heavy Duty Clutch Cover

    • Fitment Table
