 |  SKU: KNI24003-1AX

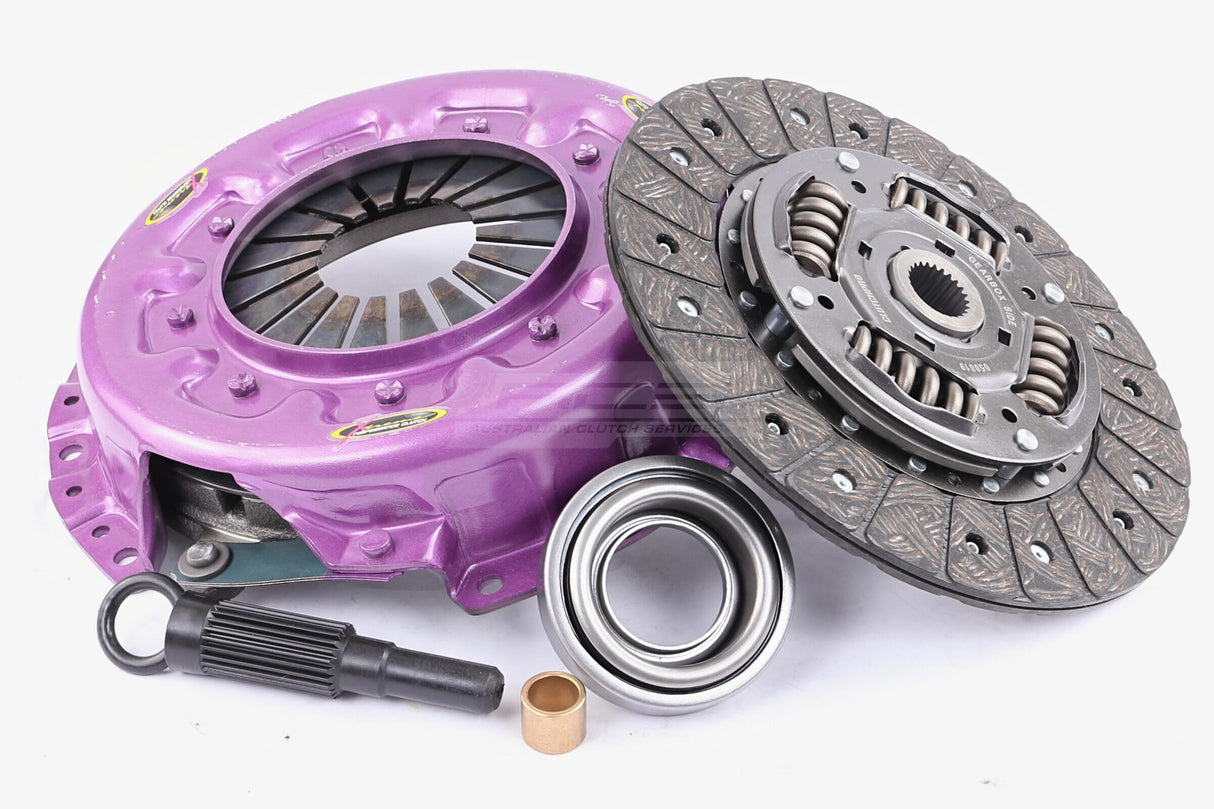

Xtreme Extra Heavy Duty Sprung Organic Clutch Kit

Nissan Silvia/180SX S13, S14 SR20DET (5MT)

$489.00

Earn [points_amount] when you buy this item.


Description

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Sprung Organic Extra Heavy Duty - 1AX

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission. Extra Heavy Duty Clutch Kits offer an increased clamp load over stage 1 kits, recommended for street and light track use in higher powered vehicles.

Recommended for: Street use and light track use in vehicles with minor engine modifications.

Features and Benefits

  • Extra heavy-duty pressure plate with 30-60% increased clamping force (depending on application)
  • Sprung organic friction disc for improved drivability
  • Ideal for street use in vehicles with minor modifications
  • Includes all necessary components for easy installation

Technical Specifications

  • Clutch Spline Count: 24
  • Clutch Disc Spline Profile: 25.4x24T
  • Pilot Bearing Included: Yes
  • Spline Grease Included: Yes
  • Max Recommended Engine Torque (Nm): 490
  • Clutch Disc Diameter (mm): 240
  • Flywheel Profile: Flat Flywheel
  • Friction Material: Organic
  • Included Components

    • Xtreme Extra Heavy Duty Sprung Organic Clutch Disc
    • Xtreme Clutch Pressure Plate

    Fitment Table
