 |  SKU: KNI28001-1AX

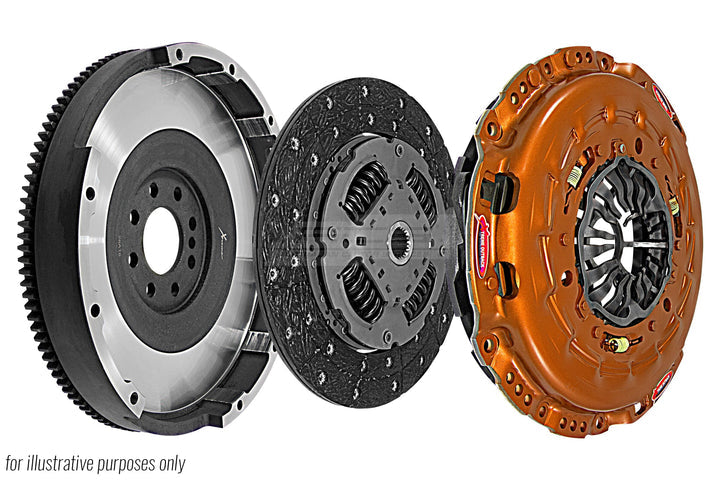

Xtreme Outback Extra Heavy Duty Sprung Organic Clutch Kit

Nissan Patrol MQ SD33T 3.3L/GQ TD42, TB42 4.2L

$739.00

Earn [points_amount] when you buy this item.


Description

The stage 1AX upgrade from Xtreme Outback is designed to provide the ultimate solution for highly tuned vehicles necessitating a significant increase in torque capacity but still requiring driveability for street applications. These kits are ideal for vehicles that have been tuned, tow heavy loads regularly, are fitted with larger tyres or heavy accessories and that are used in extreme conditions. The 100 series kit includes heavy duty pressure plate with increased clamping force and a sprung or rigid organic friction disc depending on the application. The kit also includes an alignment tool, spigot bearing/bush and release bearing where required. Xtreme Outback also offers a range of different kit options for those looking for a replacement flywheel, hydraulics or accessories.



Extra Heavy Duty Sprung Organic - 1AX

The Extra Heavy Duty range of upgrades from Xtreme Outback are designed to offer the highest levels of performance for heavily modified street and off-road vehicles. These kits offer a significant increase in clamping force (30-60% above the factory clutch) over the stage 1 equivalents and are designed specifically for vehicles that have had significant aftermarketing tuning and performance upgrades



Recommended for: Vehicles with significant performance modifications, are daily driven but also used off-road and vehicles that tow regularly.

Features and Benefits

  • Extra Heavy-duty pressure plate with 30-60% increased clamping force (depending on application)
  • Sprung organic friction disc for improved drivability
  • Ideal for regular off-road use and towing for extensively tuned/upgraded vehicles
  • Includes all necessary components for easy installation

Technical Specifications

  • Clutch Spline Count: 24
  • Clutch Disc Spline Profile: 25.4x24T
  • Pilot Bearing Included: Yes
  • Spline Grease Included: Yes
  • Max Recommended Engine Torque (Nm): 560
  • Clutch Disc Diameter (mm): 275
  • Flywheel Profile: Flat Flywheel
  • Friction Material: Organic
  • Included Components

    • Xtreme Extra Heavy Duty Sprung Organic Clutch Disc
    • Xtreme Clutch Pressure Plate

    Fitment Table
