 |  SKU: KIZ28511-1C

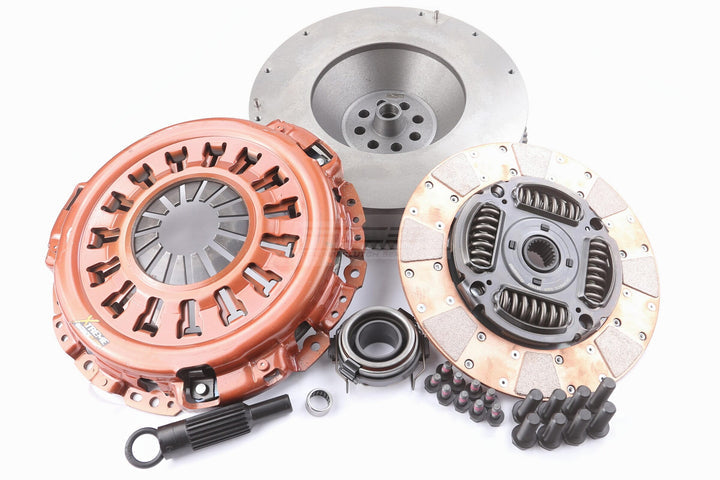

Xtreme Outback Heavy Duty Cushioned Ceramic Clutch Kit incl. SMF

Isuzu D-Max TFR, TFS/Mazda BT-50 4JJ3-TCX 3.0L
$2,459.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

The Xtreme Outback range of sprung ceramic upgrades has been designed for Motorsport applications that also require high dampening characteristics. These kits offer improved heat and torque capacity over their organic equivalents, but are specifically designed for Motorsport applications where these attributes are required for optimal performance and reliability. The Xtreme Outback 100 series kit includes a Heavy Duty pressure plate with increased clamping force and a sprung ceramic friction disc. The kit also includes an alignment tool, spigot bearing/bush and release bearing where required. Xtreme Outback also offers a range of different kit options for those looking for a replacement flywheel, hydraulics or accessories as well as Extra Heavy Duty kits for specific applications requiring an even further increase in torque capacity.



Cushioned Ceramic - 1C

Xtreme Outback Stage 2 Ceramic upgrades have been designed to offer the ultimate in heat capacity for single plate upgrades and are designed specifically for motorsport applications such as endurance rally events and time trials. Available in Sprung Ceramic (1B) and Cushioned Ceramic (1C), there are a wide variety of options to choose from depending on the vehicle use.



Recommended for: Motorsport Applications



Notes:

  • This clutch kit includes a Single Mass Flywheel (SMF)

Features and Benefits

  • Heavy-duty pressure plate with 15-40% increased clamping force (depending on application)
  • Cushioned ceramic friction disc for improved torque capacity, heat resistance and great driveability
  • Ideal for motorsport applications
  • Includes all necessary components for easy installation

Technical Specifications

  • Transmission Type: Manual Transmission
  • Clutch Spline Count: 21
  • Clutch Disc Spline Profile: 29.0 x 21T
  • Pilot Bearing Included: Yes
  • Flywheel Included: Single Mass
  • Pressure Plate Bolts Included: Yes
  • Spline Grease Included: Yes
  • Flywheel Included: Dual-mass to Single-mass Conversion
  • Clutch Type: High-Performance Clutch
  • Screw Set Included: Yes
  • Max Recommended Engine Torque (Nm): 920
  • Clutch Disc Diameter (mm): 275
  • Flywheel Profile: Flat Flywheel
  • Friction Material: Ceramic

Included Components

  • Xtreme Heavy Duty Cushioned Ceramic Clutch Disc
  • Xtreme Clutch Pressure Plate
  • Xtreme Clutch Single Mass Flywheel

Fitment Table
