 |  SKU: KTY23015-1C

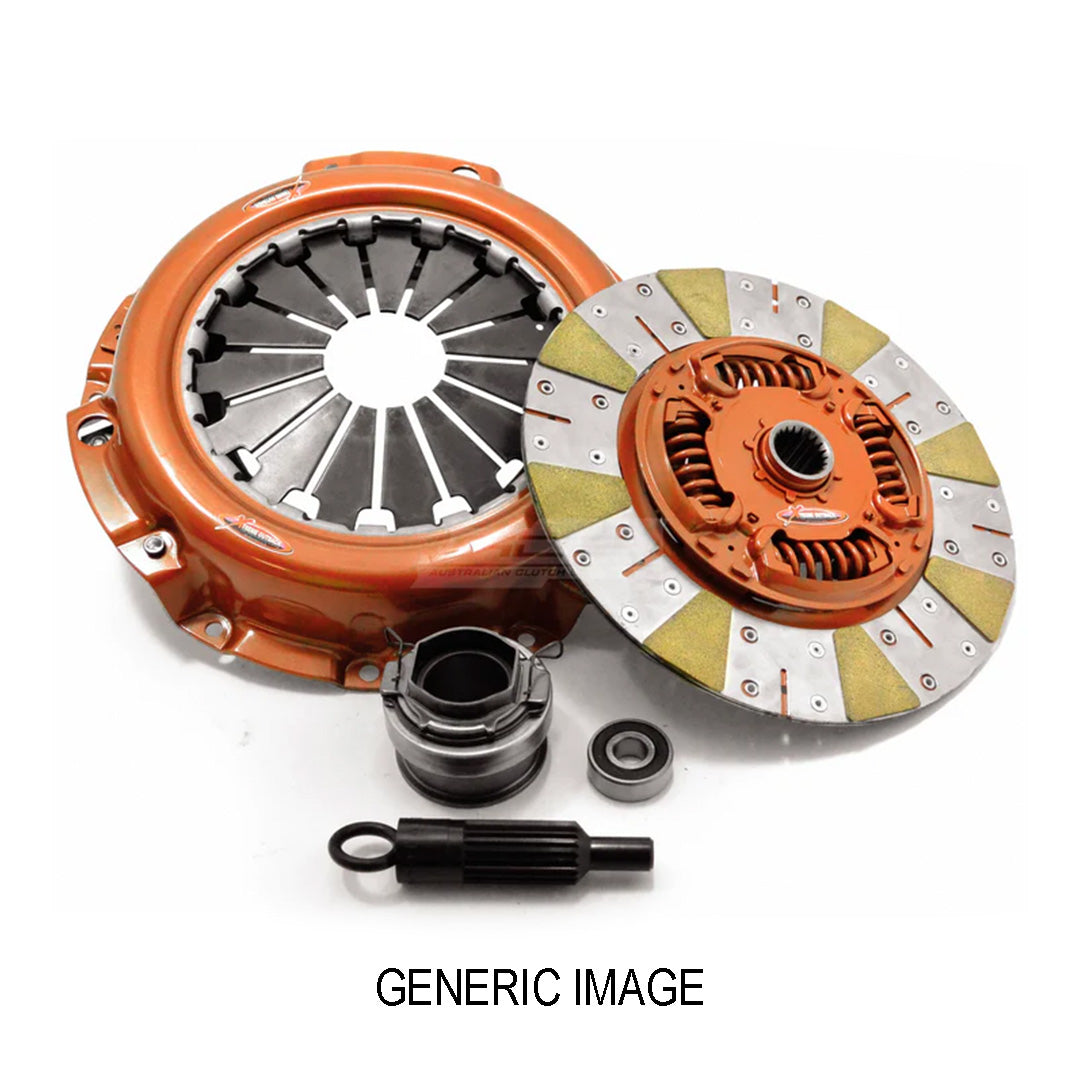

Xtreme Outback Heavy Duty Cushioned Ceramic Clutch Kit

Toyota Chaser SX80 4S-F 1.8L/Hilux Surf LN130 2LT 2.4L

$709.95

Earn [points_amount] when you buy this item.


Description

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.



Cushioned Ceramic - 1C

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.



Recommended for: Track (Motorsport) focused cars that are also occassionally used on the public roads.

Features and Benefits

  • Heavy-duty pressure plate with 15-40% increased clamping force (depending on application)
  • Cushioned ceramic friction disc for improved torque capacity, heat resistance and great driveability
  • Ideal for track focused vehicles that may see occassional road use
  • Includes all necessary components for easy installation

Technical Specifications

  • Number of Teeth: 21
  • Hub Profile: 29.8x21T
  • Supplementary Article/Supplementary Info: with pilot bearing
  • Supplementary Article/Supplementary Info: with synthetic grease
  • for flywheel depth [mm]: 0.5
  • Max. transferable engine torque [Nm]: 430
  • Friction Lining Outer Diameter [mm]: 225
  • Flywheel Profile: elevated flywheel
  • Friction lining material: Ceramic
  • Included Components

  • Xtreme Heavy Duty Cushioned Ceramic Clutch Disc
  • Xtreme Heavy Duty Clutch Cover
  • Fitment Table
