 |  SKU: KSU23015-1C

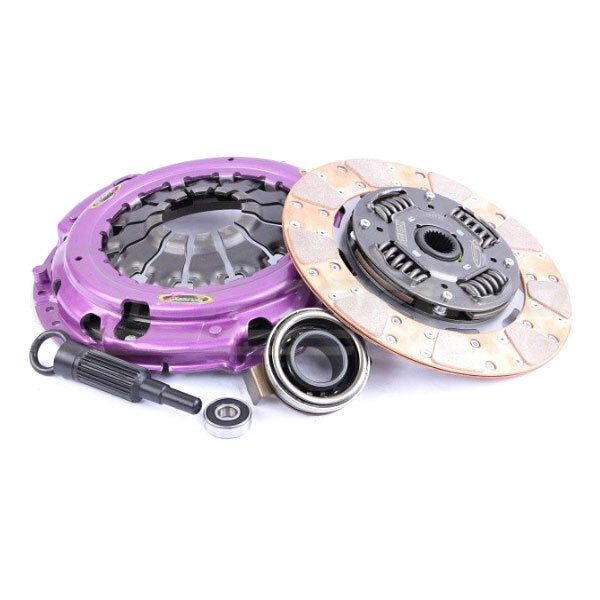

Xtreme Heavy Duty Cushioned Ceramic Clutch Kit

Subaru WRX 06-17/FXT 05-13/Liberty GT 09-14 (5MT Push Type)
$1,049.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Stage 2 - 1C Cushioned Ceramic

Recommended for: Motorsport Applications

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

Vehicle Fitment:

  • 2006-2007 Subaru WRX (EJ25 5-Speed Manual Push Type Clutch)
  • 2008-2014 Subaru WRX (EJ25 5-Speed Manual Push Type Clutch)
  • 2015-2017 Subaru WRX (230mm, Measure OEM clutch before ordering - FA20 6-Speed Manual Push Type Clutch)
  • 2005-2008 Subaru Forester XT (EJ25 5-Speed Manual Push Type Clutch)
  • 2008-2013 Subaru Forester XT (EJ25 5-Speed Manual Push Type Clutch)
  • 2009-2014 Subaru Liberty GT (EJ25 5-Speed Manual Push Type Clutch)

Technical Specifications

Flywheel Step (mm) -2
Clutch Disc Diameter (mm) 230
Clutch Disc Spline Count 24
Clutch Disc Spline Diameter (mm) 25.2
Disc Type Sprung
Friction Material Ceramic
Stage 2
Recommended Use Performance Street
Clamping Force % Increase 25%
Torque (Nm) Inc FOS 700
Torque (ftlbs) Inc FOS 520
Spigot Bush/Bearing Included Yes
Aligning Tool Included Yes
Spline Grease Included Yes
Transport Weight (kg) 7.9

Fitment Table
