 |  SKU: KTY24646-1R

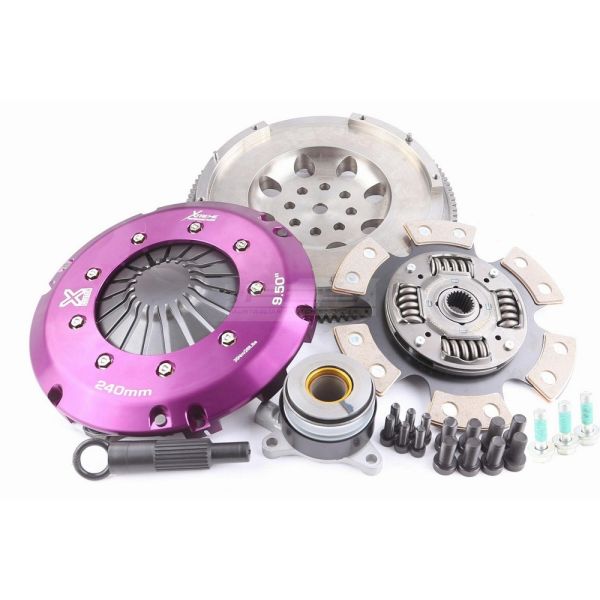

Xtreme Heavy Duty Sprung Ceramic Clutch Kit w/ Single Mass Conversion Flywheel

Toyota GR Corolla 22+/GR Yaris 20+
$2,749.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Stage 2 - 1B Sprung Ceramic

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Recommended for: Motorsport Applications

Notes: Kit includes a Single Mass Conversion Flywheel

Technical Specifications

  • Flywheel Step (mm): -9.5
  • Clutch Disc Diameter (mm): 240
  • Clutch Disc Spline Count: 23
  • Clutch Disc Spline Diameter (mm): 26.0
  • Disc Type: Sprung
  • Friction Material: Ceramic
  • Stage: 2R
  • Recommended Use: Track
  • Clamping Force % Increase: 35%
  • Torque (Nm) Inc FOS: 910
  • Torque (ftlbs) Inc FOS: 670
  • Aligning Tool Included: Yes
  • Flywheel Included: Single Mass
  • Flywheel Bolts Included: Yes
  • Concentric Slave Cylinder Included: Yes
  • Pressure Plate Bolts Included: Yes
  • Spline Grease Included: Yes
  • Transport Weight (kg): 15.0
