Xtreme Heavy Duty Sprung Organic Clutch Kit incl. Flywheel & CSC

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Sprung Organic - 1A

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

Recommended for: Street use in vehicles with minor engine modifications.

Notes:

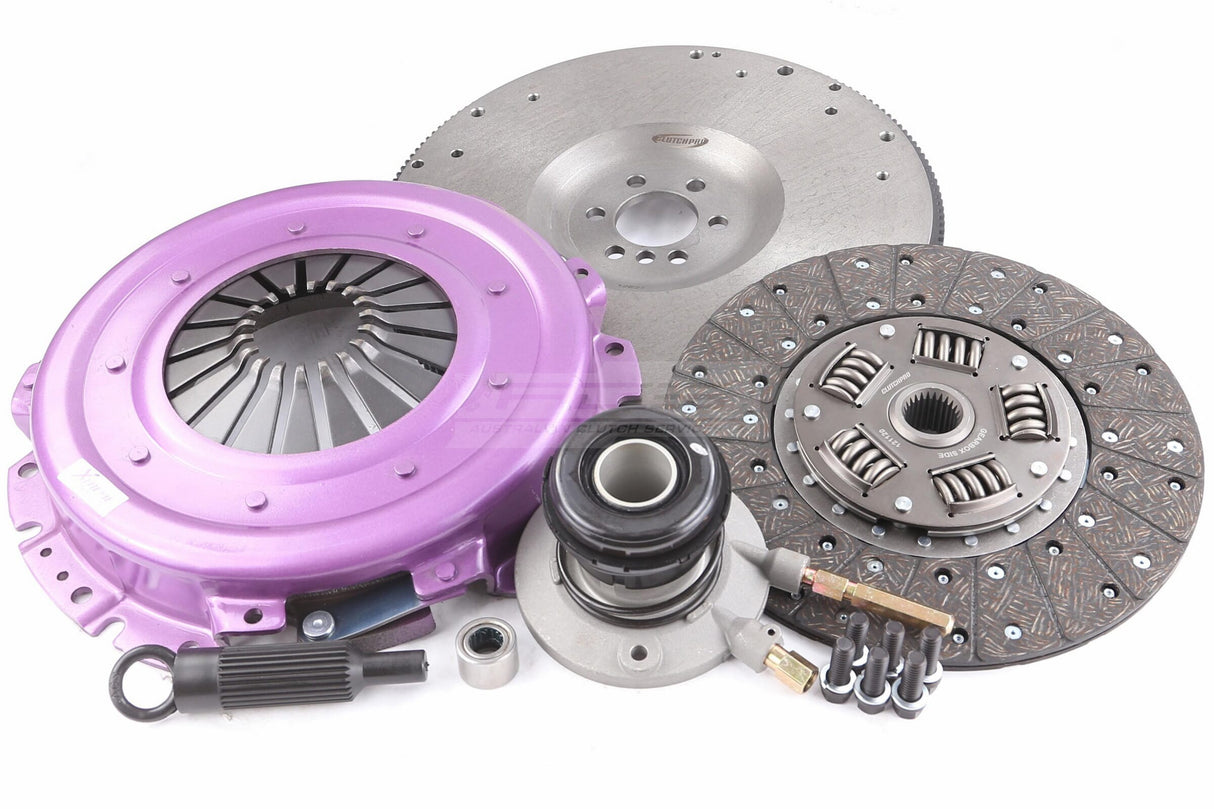

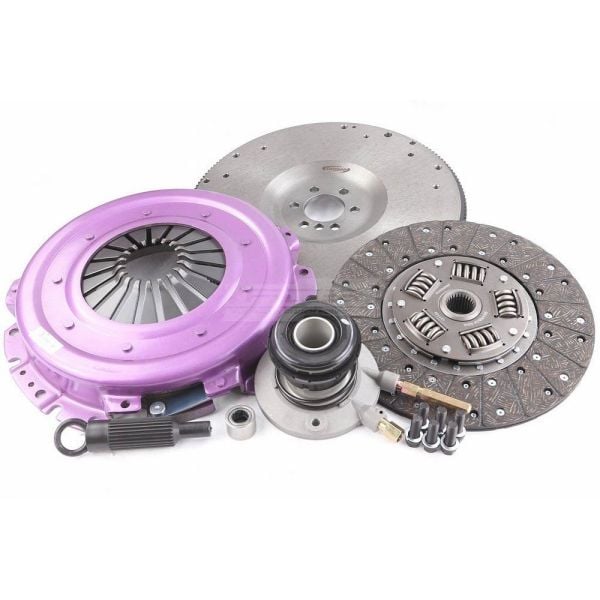

• This clutch kit includes a Single Mass Flywheel (SMF) and Concentric Slave Cylinder (CSC)

• Heavy-duty pressure plate with 15-40% increased clamping force (depending on application)
• Sprung organic friction disc for improved drivability
• Ideal for street use in vehicles with minotr modifications
• Includes all necessary components for easy installation

• Flywheel Step: Flat
• Clutch Disc Diameter: 280 mm
• Clutch Disc Spline Count: 26
• Clutch Disc Spline Diameter: 29 mm
• Disc Type: Sprung
• Friction Material: Organic
• Stage: 1
• Recommended Use: Street
• Torque: 700 Nm (inc. FOS)
• Torque: 520 ft-lbs (inc. FOS)
• Spigot Bush/Bearing Included: Yes
• Aligning Tool Included: Yes
• Flywheel Included: Single Mass
• Concentric Slave Cylinder Included: Yes
• Pressure Plate Bolts Included: Yes
• Spline Grease Included: Yes
• Transport Weight: 26.4 kg
