 |  SKU: KLR26623-1A

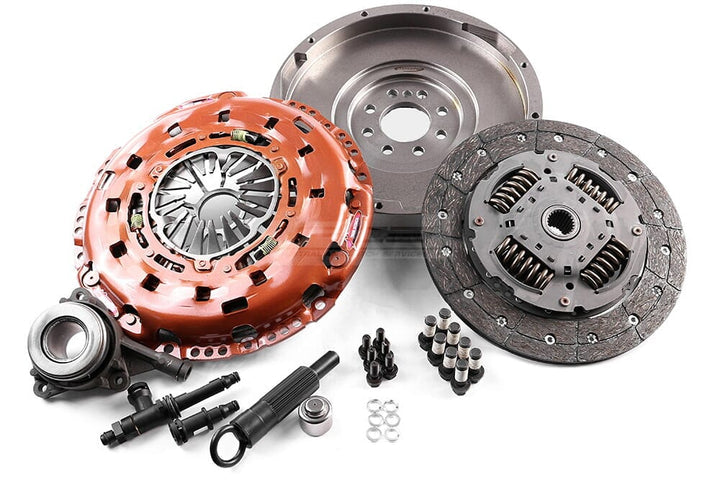

Xtreme Outback Heavy Duty Sprung Organic Clutch Kit incl. Flywheel & CSC

Land Rover Defender 90, 110, 130 2.2L/.4L 07-16

$1,899.00

Earn [points_amount] when you buy this item.


Description

The stage 1 upgrade from Xtreme Outback is designed to provide a significant increase in torque capacity whilst retaining driveability for daily driven vehicles. These kits are ideal for vehicles that have been tuned, tow heavy loads regularly, are fitted with larger tyres or heavy accessories and that are used in extreme conditions. The 100 series kit includes heavy duty pressure plate with increased clamping force and a sprung or rigid organic friction disc depending on the application. The kit also includes an alignment tool, spigot bearing/bush and release bearing where required. Xtreme Outback also offers a range of different kit options for those looking for a replacement flywheel, hydraulics or accessories as well as extra heavy duty kits for specific applications requiring an even further increase in torque capacity.



Sprung Organic - 1A

The stage 1 heavy duty organic clutch kit provides excellent driveability along with an approximate 15-40% increase in clamp force (application specific). These clutch kits are mainly used in street vehicles with larger wheels or performance upgrades as well as vehicles that are regularly used off-road or tow at the limit of their tow capacity.



Recommended for: Vehicles with minor performance modifications, are daily driven but also used off-road and vehicles that tow regularly.



Notes:

  • This clutch kit includes a Flywheel and Concentric Slave Cylinder (CSC)

Features and Benefits

  • Heavy-duty pressure plate with 15-40% increased clamping force (depending on application)
  • Sprung organic friction disc for improved drivability
  • Ideal for regular off-road use and towing
  • Includes all necessary components for easy installation

Technical Specifications

  • Clutch Spline Count: 23
  • Clutch Disc Spline Profile: 26.0x23T
  • Pilot Bearing Included: Yes
  • Flywheel Included: Single Mass
  • Concentric Slave Cylinder Included: Yes
  • Spline Grease Included: Yes
  • Screw Set Included: Yes
  • Flywheel Step (mm): 22.9
  • Max Recommended Engine Torque (Nm): 520
  • Clutch Disc Diameter (mm): 260
  • Flywheel Profile: Recessed Flywheel
  • Friction Material: Organic
  • Included Components

    • Xtreme Heavy Duty Sprung Organic Clutch Disc
    • Xtreme Clutch Pressure Plate
    • Xtreme Clutch Flywheel
    • Concentric Slave Cylinder

    Fitment Table
