 |  SKU: KSU24590-1A

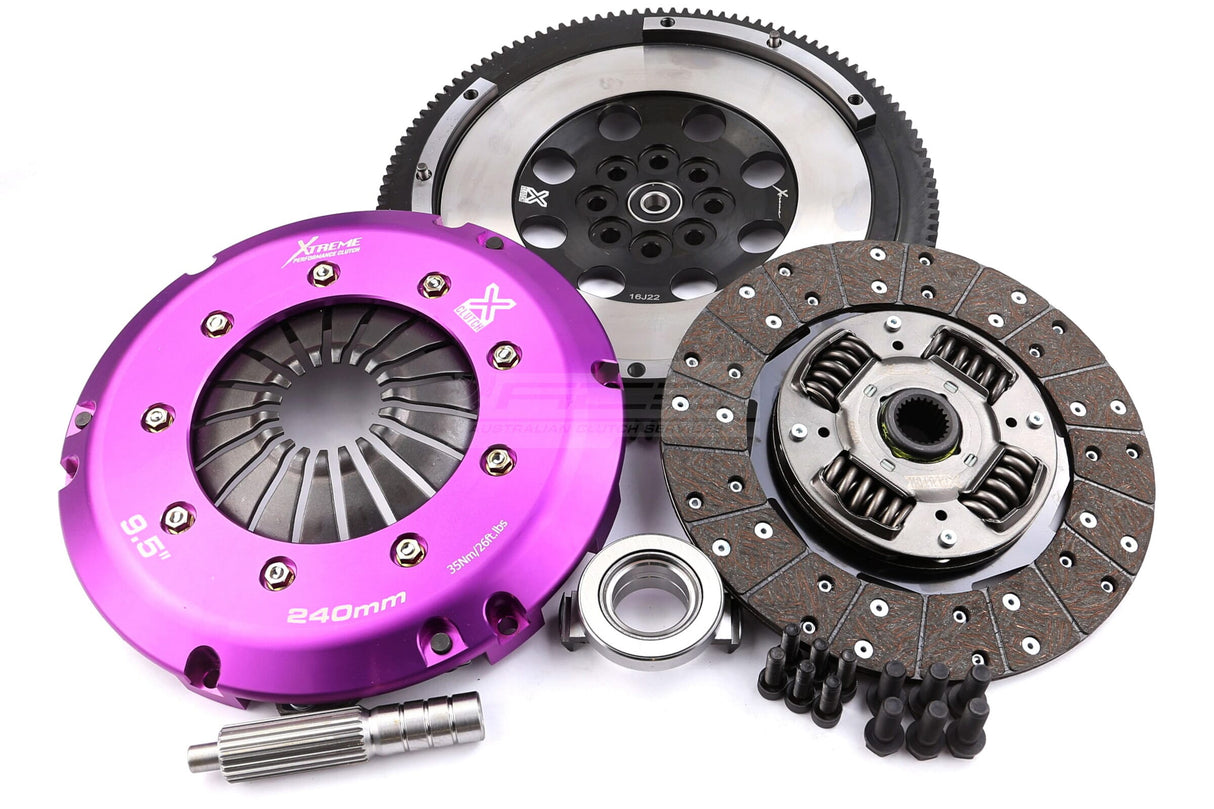

Xtreme Heavy Duty Sprung Organic Clutch Kit incl. Flywheel

Subaru BRZ 12+/Toyota 86, GR86 12+
$2,139.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Sprung Organic - 1A

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

Recommended for: Street use in vehicles with minor engine modifications.

Notes:

  • This clutch kit includes a Flywheel

Features and Benefits

  • Heavy-duty pressure plate with 15-40% increased clamping force (depending on application)
  • Sprung organic friction disc for improved drivability
  • Ideal for street use in vehicles with minor modifications
  • Includes all necessary components for easy installation

Technical Specifications

  • Flywheel Step (mm) -9.53mm
  • Clutch Disc Diameter (mm) 240mm
  • Clutch Disc Spline Count 24
  • Clutch Disc Spline Diameter (mm) 25.2mm
  • Disc Type Sprung
  • Friction Material Organic
  • Stage 1
  • Recommended Use Street
  • Clamping Force % Increase 93%
  • Torque (Nm / ftlbs) Inc FOS 600 / 440
  • Spigot Bush/Bearing Included Yes
  • Aligning Tool Included Yes
  • Flywheel Included Single Mass
  • Flywheel Bolts Included Yes
  • Pressure Plate Bolts Included Yes
  • Spline Grease Included Yes
  • Weight (kg) 11.7 kg

Included Components

  • Xtreme Heavy Duty Sprung Organic Clutch Disc
  • Xtreme Clutch Pressure Plate
  • Xtreme Clutch Flywheel

Fitment Table
