 |  SKU: KHN24037-1A

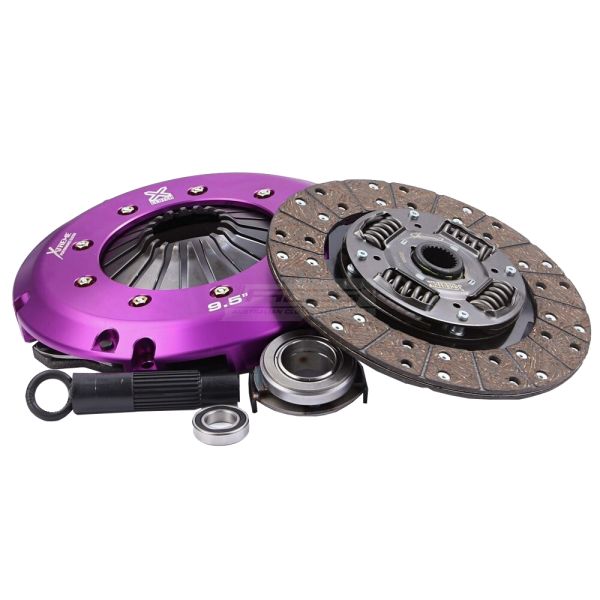

Xtreme Heavy Duty Sprung Organic Clutch Kit

Honda Civic Type R FK8 17+/FL5 22+
$1,349.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Sprung Organic - 1A

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

Recommended for: Street use in vehicles with minor engine modifications.

Notes: Designed to suit SMF (Single Mass Flywheel) conversions only

Technical Specifications

  • Flywheel Step (mm:  -9.53
  • Clutch Disc Diameter (mm): 240
  • Clutch Disc Spline Count: 24
  • Clutch Disc Spline Diameter (mm): 26.4
  • Disc Type: Sprung
  • Friction Material: Organic
  • Stage: 1
  • Recommended Use: Street
  • Clamping Force % Increase: 100%
  • Torque (Nm) Inc FOS: 600
  • Torque (ftlbs) Inc FOS: 440
  • Spigot Bush/Bearing Included: Yes
  • Aligning Tool Included: Yes
  • Spline Grease Included: Yes
  • Transport Weight (kg): 6.4
  • Note: Suits Converted SMF (Single Mass Flywheel)

Fitment Table
