 |  SKU: KMI28591-1AX

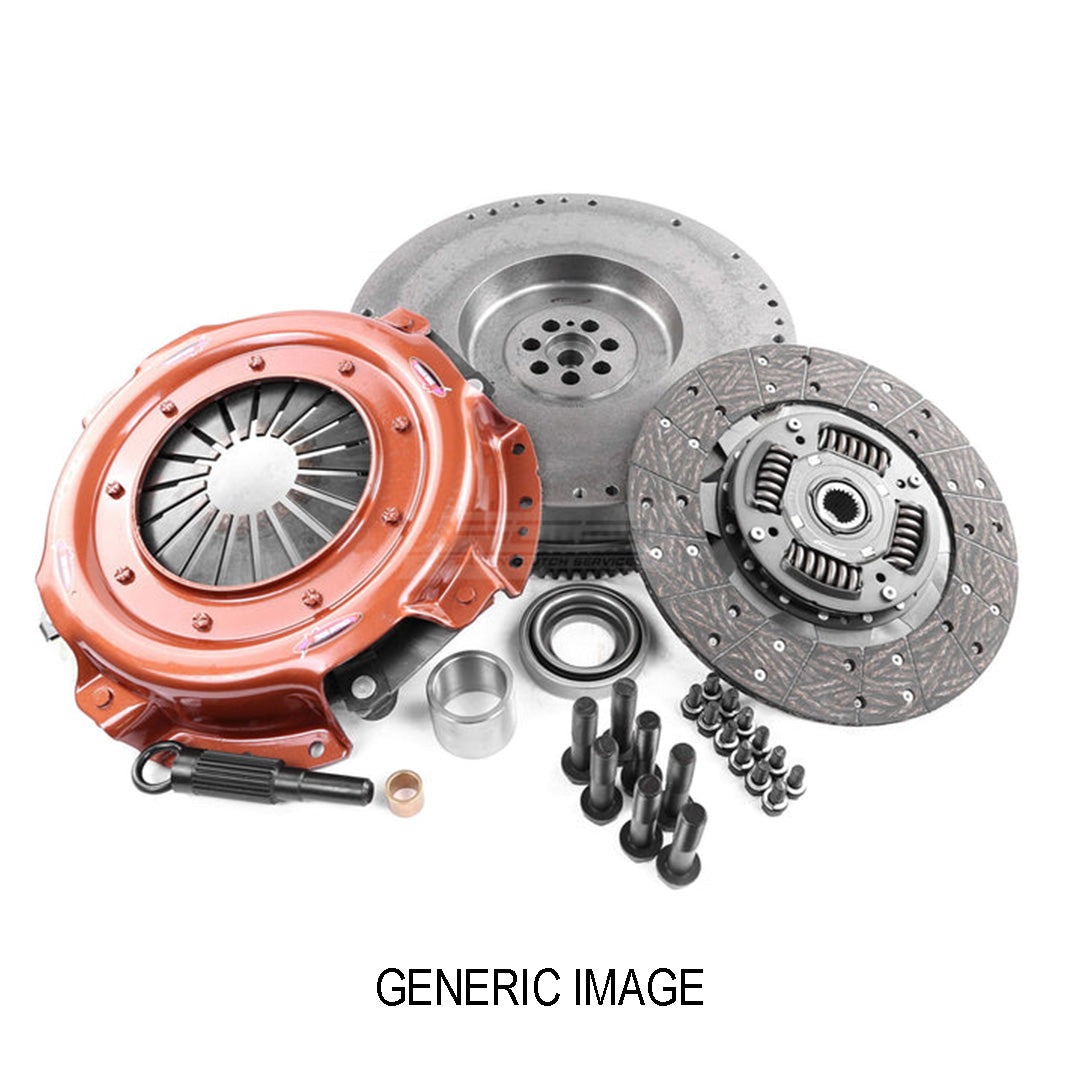

Xtreme Outback Extra Heavy Duty Sprung Organic Clutch Kit incl. Flywheel

Mitsubishi Pajero Sport/Triton ML 4M41T 3.2L 06-16
$2,459.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

    The stage 1AX upgrade from Xtreme Outback is designed to provide the ultimate solution for highly tuned vehicles necessitating a significant increase in torque capacity but still requiring driveability for street applications. These kits are ideal for vehicles that have been tuned, tow heavy loads regularly, are fitted with larger tyres or heavy accessories and that are used in extreme conditions. The 100 series kit includes heavy duty pressure plate with increased clamping force and a sprung or rigid organic friction disc depending on the application. The kit also includes an alignment tool, spigot bearing/bush and release bearing where required. Xtreme Outback also offers a range of different kit options for those looking for a replacement flywheel, hydraulics or accessories.



    Extra Heavy Duty Sprung Organic - 1AX

    The Extra Heavy Duty range of upgrades from Xtreme Outback are designed to offer the highest levels of performance for heavily modified street and off-road vehicles. These kits offer a significant increase in clamping force (30-60% above the factory clutch) over the stage 1 equivalents and are designed specifically for vehicles that have had significant aftermarketing tuning and performance upgrades



    Recommended for: Vehicles with significant performance modifications, are daily driven but also used off-road and vehicles that tow regularly.



    Notes:

    • This clutch kit includes a Flywheel



    Features and Benefits

    • Extra Heavy-duty pressure plate with 30-60% increased clamping force (depending on application)
    • Sprung organic friction disc for improved drivability
    • Ideal for regular off-road use and towing for extensively tuned/upgraded vehicles
    • Includes all necessary components for easy installation

    Technical Specifications

  • Number of Teeth: 23
  • Hub Profile: 26.3x23T
  • Supplementary Article/Supplementary Info: with pilot bearing
  • Supplementary Article/Supplementary Info: with single-mass flywheel
  • Supplementary Article/Supplementary Info: with synthetic grease
  • Max. transferable engine torque [Nm]: 490
  • Friction Lining Outer Diameter [mm]: 275
  • Flywheel Profile: flat flywheel
  • Friction lining material: Organic

    •

    Included Components

  • Xtreme Outback Heavy Duty Sprung Organic Clutch Disc
  • Xtreme Outback Extra Heavy Duty Pressure Plate
  • Xtreme Outback Clutch Flywheel

    • Fitment Table
