 |  SKU: KTY30093-1AX

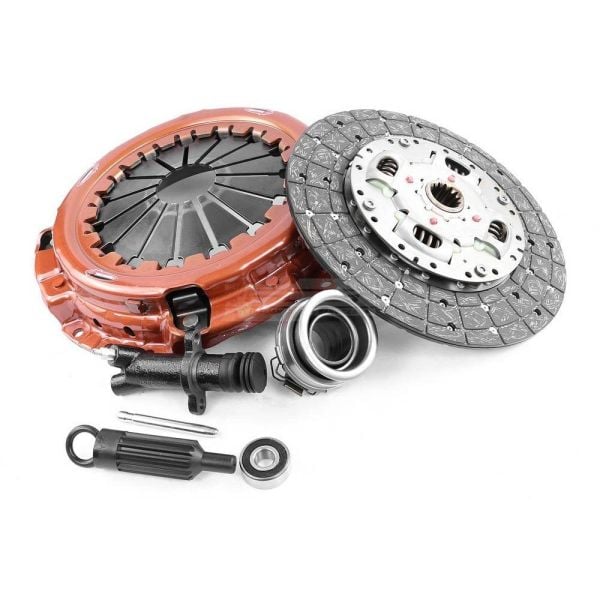

Xtreme Outback Extra Heavy Duty Sprung Organic Clutch Kit incl. Slave Cylinder

Toyota LandCruiser VDJ/VDJL 76/78/79 1VD-FTV 4.5L V8 07+
$1,529.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Sprung Organic Extra Heavy Duty - 1AX

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission. Extra Heavy Duty Clutch Kits offer an increased clamp load over stage 1 kits, recommended for street and light track use in higher powered vehicles.

Recommended for: Street use and light track use in vehicles with minor engine modifications.

Notes:

  • This clutch kit includes a Slave Cylinder

Features and Benefits

  • Extra Heavy-duty pressure plate with 30-60% increased clamping force (depending on application)
  • Sprung organic friction disc for improved drivability
  • Ideal for regular off-road use and towing for extensively tuned/upgraded vehicles
  • Includes all necessary components for easy installation

Technical Specifications

  • Flywheel Step: +0.5 mm
  • Clutch Disc Diameter: 300 mm
  • Clutch Disc Spline Count: 14
  • Clutch Disc Spline Diameter: 32.0 mm
  • Disc Type: Sprung
  • Friction Material: Organic
  • Stage: 1X
  • Recommended Use: Street / Offroad / Towing
  • Clamping Force % Increase: 58%
  • Torque: 750 Nm (inc. FOS)
  • Torque: 550 ft-lbs (inc. FOS)
  • Spigot Bush/Bearing Included: Yes
  • Aligning Tool Included: Yes
  • Spline Grease Included: Yes
  • Note: Includes External Slave Cylinder
  • Transport Weight: 16 kg

Included Components

  • Xtreme Extra Heavy Duty Sprung Organic Clutch Disc
  • Xtreme Clutch Pressure Plate
  • Clutch Slave Cylinder

Fitment Table
