Xtreme Outback Heavy Duty Dual Friction Clutch Kit incl. Slave Cylinder

Toyota LandCruiser VDJ/VDJL 76/78/79 1VD-FTV 4.5L V8 07+
$1,629.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Introducing the game changer for big power VDJs. The Xtreme Outback X-Series takes a self-adjusting pressure plate with an insane 1600kg of clamping force and combines this with a high performance friction disc to maximise torque capacity. This version comes with the dual-friction disc making it suitable for vehicles with a 185% increase in torque at the engine. The addition of a ceramic friction facing will increase torque capacity but will also introduce some shudder etc. If you are looking for something with more driveability, we also offer an organic version (KTY29590-1TX)

This kit comes with the Xtreme Outback custom slave cylinder for optimal pedal feel and engagement point. For those looking for a clutch upgrade for a highly tuned VDJ, whilst minimising changes to driveability, there is simply no alternative.



Dual Friction - 1DX

Organic/Ceramic Dual Friction Clutch Disc offers improved torque holding capacity without sacrificing too much pedal effort and driver control.



Recommended for: Very highly tuned vehicles with turbo upgrades and injector upgrades etc.



Notes:

  • This clutch kit includes a Slave Cylinder

Features and Benefits

  • 1600kg clamping force pressure plate with self-adjusting technology
  • Peak torque capacity: 1,5300Nm
  • Recommended torque capacity (incl. factor of safety): 1,225Nm
  • Dual-Friction clutch disc (organic one side, ceramic the other)
  • Custom engineered slave cylinder for optimal pedal engagement height

Technical Specifications

  • Clutch Spline Count: 14
  • Clutch Disc Spline Profile: 32.0 x 14T
  • Pilot Bearing Included: Yes
  • Spline Grease Included: Yes
  • Clutch Slave Cylinder Included: Yes
  • Flywheel Step (mm): 0.5
  • Max Recommended Engine Torque (Nm): 930
  • Clutch Disc Diameter (mm): 300
  • Flywheel Profile: Elevated Flywheel
  • Friction Material: Organic
  • Friction Material: Ceramic

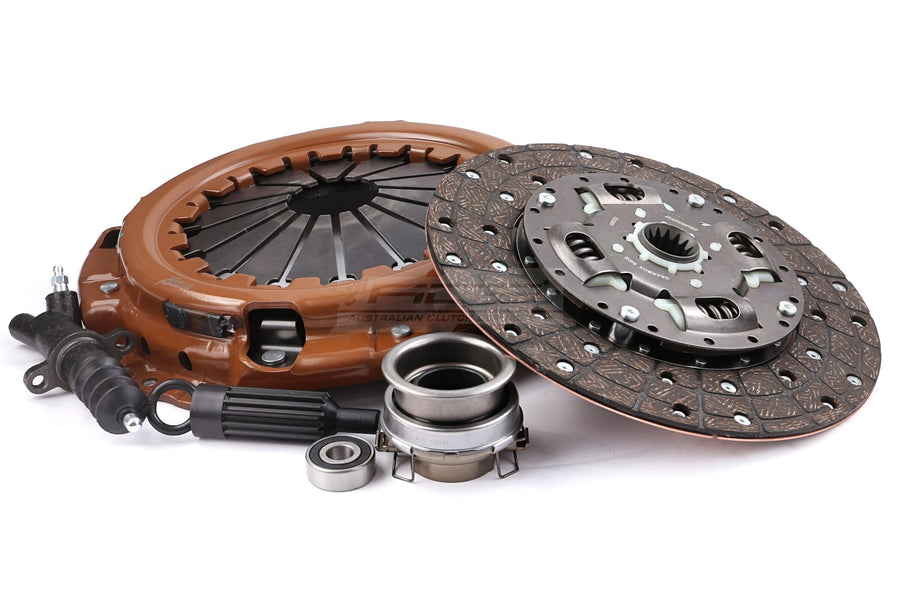

Included Components

  • Xtreme Outback Heavy Duty Dual Friction Clutch Disc
  • Xtreme Clutch Pressure Plate
  • Clutch Slave Cylinder

Fitment Table
