 |  SKU: KTY24001-1B

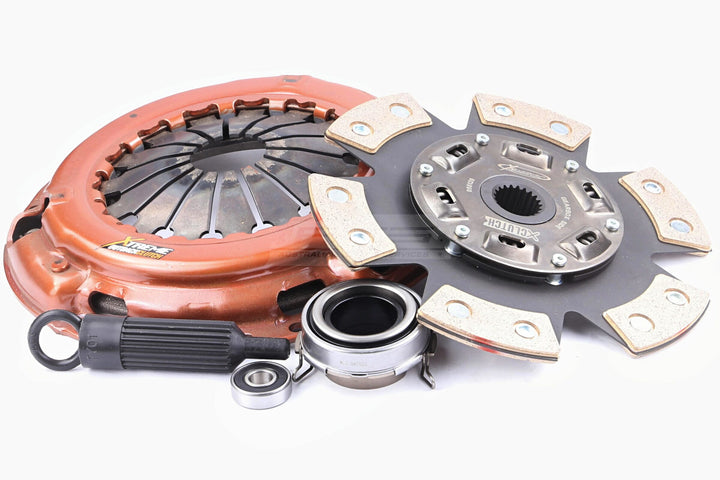

Xtreme Outback Performance Sprung Ceramic Clutch Kit

Toyota Hilux/HiAce 2LT 2.4L/3L 2.8L/5L 3.0L 88-97
$389.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

The Xtreme Outback range of sprung ceramic upgrades has been designed for Motorsport applications that also require high dampening characteristics. These kits offer improved heat and torque capacity over their organic equivalents, but are specifically designed for Motorsport applications where these attributes are required for optimal performance and reliability. The Xtreme Outback 100 series kit includes a Heavy Duty pressure plate with increased clamping force and a sprung ceramic friction disc. The kit also includes an alignment tool, spigot bearing/bush and release bearing where required. Xtreme Outback also offers a range of different kit options for those looking for a replacement flywheel, hydraulics or accessories as well as Extra Heavy Duty kits for specific applications requiring an even further increase in torque capacity.



Sprung Ceramic - 1B

The sprung ceramic range of kits have been developed for high-power applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in offroad cars that retain the factory transmission.

Features and Benefits

  • Heavy-duty pressure plate with 15-40% increased clamping force (depending on application)
  • Sprung ceramic friction disc for improved torque capacity, heat resistance and great drivability
  • Ideal for highly modified street vehicles or track focused vehicles
  • Includes all necessary components for easy installation

Technical Specifications

  • Torque (Nm/ ftlbs) INC FOS: 410/ 300
  • Clamp Load: 700Kg (40% inc.)
  • Flywheel Step: +0.5mm
  • Clutch Disc Diameter: 236mm
  • Clutch Disc Spline Count: 21
  • Clutch Disc Spline Diameter: 29.8mm

Included Components

  • Xtreme Outback Performance Sprung Ceramic Clutch Disc
  • Xtreme Outback Heavy Duty Pressure Plate

    • Fitment Table
