 |  SKU: KSU23012-1EX

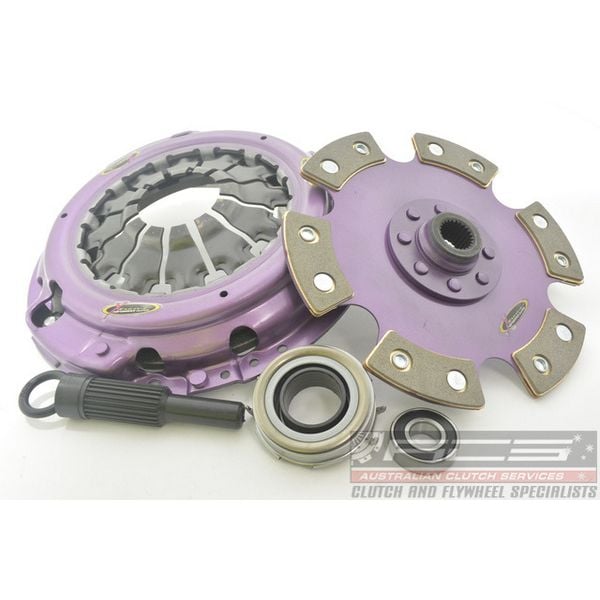

Xtreme Performance Extra Heavy Duty Solid Ceramic Clutch Kit

Subaru BRZ 12+/Toyota 86, GR86 12+
$1,149.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.



Extra Heavy Duty Solid Ceramic - 1EX

Xtreme Extra Heavy Duty Solid Ceramic Clutch Kits are designed for road and track going vehicles that require the highest torque capacity and temperature tolerance, and faster engagement. Clutch engagement is very aggressive, so it is not recommended for daily driven vehicles.



Recommended for: Track (Motorsport) focused cars that are also rarely used on the public roads.

Features and Benefits

  • Ceramic friction disc for improved torque capacity, heat resistance
  • Solid (unsprung) centre for improved engagement speeds
  • Ideal for track focused vehicles
  • Includes all necessary components for easy installation

Technical Specifications

  • Flywheel Step (mm) -2.0mm
  • Clutch Disc Diameter (mm) 230mm
  • Clutch Disc Spline Count 24
  • Clutch Disc Spline Diameter (mm) 25.2mm
  • Disc Type Solid
  • Friction Material Ceramic
  • Recommended Use Motorsport
  • Torque (Nm / ftlbs) Inc FOS 720 / 520
  • Spigot Bush/Bearing Included Yes
  • Aligning Tool Included Yes
  • Spline Grease Included Yes
  • Weight (kg) 6.0 kg

Included Components

  • Xtreme Performance Solid Ceramic Clutch Disc
  • Xtreme Extra Heavy Duty Clutch Cover

    • Fitment Table
