Xtreme Performance Extra Heavy Duty Sprung Ceramic Clutch Kit

Subaru BRZ 12+/Toyota 86, GR86 12+
$1,149.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Sprung Ceramic - 1BX

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission. Extra Heavy Duty Clutch Kits offer an increased clamp load over standard 1B kits, recommended for street and light track use in higher powered vehicles.

Recommended for: Recommended for Track (Motorsport) focused cars, or those who want the motorsport feel.

Features and Benefits

  • Heavy-duty pressure plate with 30-60% increased clamping force (depending on application)
  • Sprung ceramic friction disc for improved torque capacity, heat resistance and great driveability
  • Ideal for highly modified street vehicles or track focused vehicles
  • Includes all necessary components for easy installation

Technical Specifications

  • Flywheel Step (mm) -2.0mm
  • Clutch Disc Diameter (mm) 230mm
  • Clutch Disc Spline Count 24
  • Clutch Disc Spline Diameter (mm) 25.2mm
  • Disc Type Sprung
  • Friction Material Ceramic
  • Stage 2
  • Recommended Use Track
  • Torque (Nm / ftlbs) Inc FOS 690 / 510
  • Spigot Bush/Bearing Included Yes
  • Aligning Tool Included Yes
  • Spline Grease Included Yes
  • Weight (kg) 7.8 kg

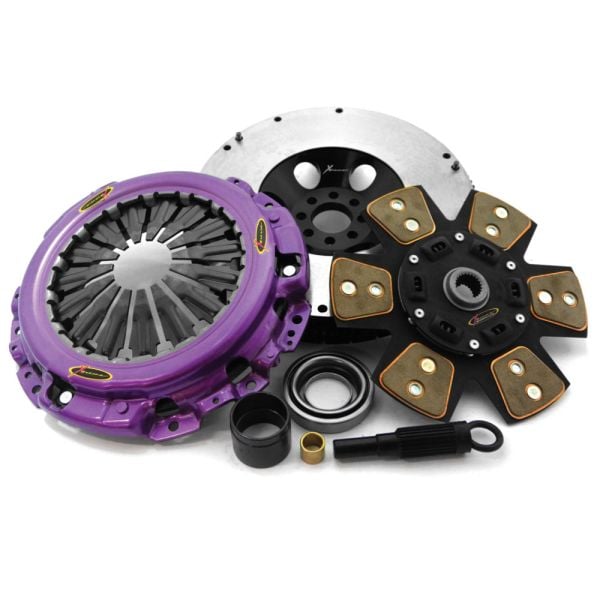

Included Components

  • Xtreme Performance Extra Heavy Duty Sprung Ceramic Clutch Disc
  • Xtreme Clutch Pressure Plate

Fitment Table
