| SKU:
KSU23512-1B

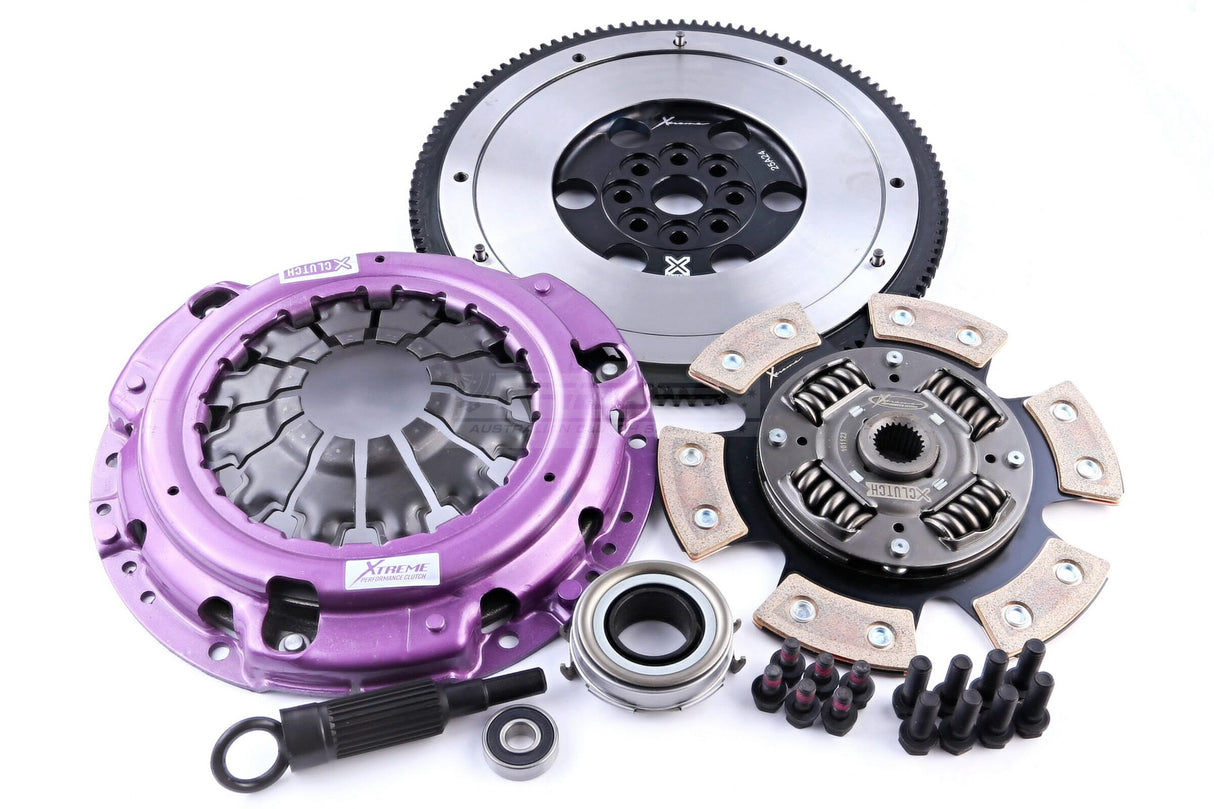

Xtreme Performance Sprung Ceramic Clutch Kit incl. Flywheel
Subaru BRZ 12+/Toyota 86, GR86 12+
-
International Shipping
We ship Worldwide
-
AUSSIE OWNED
-
FAST DISPATCH
-
WE PRICE MATCH
-
FLAT RATE SHIPPING
Description
Description
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.
Sprung Ceramic - 1B
The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.
Recommended for: Recommended for Track (Motorsport) focused cars, or those who want the motorsport feel.
Notes:
- This clutch kit includes a Flywheel
Features and Benefits
Features and Benefits
- Heavy-duty pressure plate with 15-40% increased clamping force (depending on application)
- Sprung ceramic friction disc for improved torque capacity, heat resistance and great driveability
- Ideal for highly modified street vehicles or track focused vehicles
- Includes all necessary components for easy installation
Technical Specifications
Technical Specifications
- Flywheel Step (mm) -2.0mm
- Clutch Disc Diameter (mm) 230mm
- Clutch Disc Spline Count 24
- Clutch Disc Spline Diameter (mm) 25.2mm
- Disc Type Sprung
- Friction Material Ceramic
- Stage 2
- Recommended Use Track
- Clamping Force % Increase 25%
- Torque (Nm / ftlbs) Inc FOS 540 / 400
- Spigot Bush/Bearing Included Yes
- Aligning Tool Included Yes
- Flywheel Included Single Mass
- Spline Grease Included Yes
- Weight (kg) 14.5 kg
