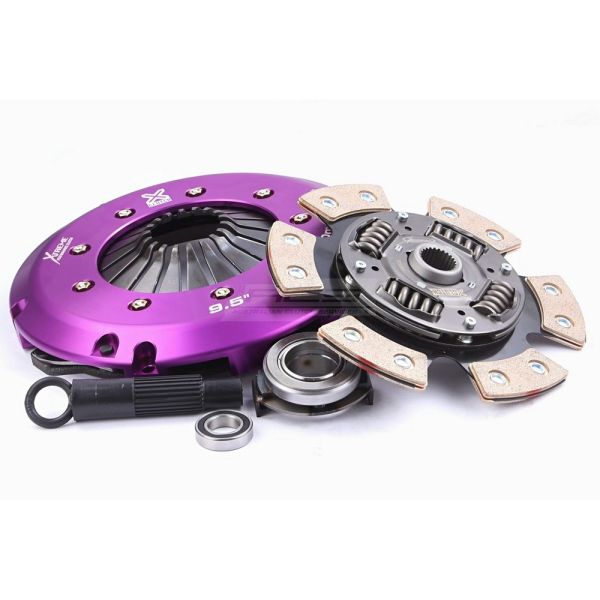

Xtreme Performance Sprung Ceramic Clutch Kit
Honda Civic Type R FK8 17+/FL5 22+
Product will be in stock soon.
This product is in stock & ready to be delivered.
This product has very limited stock remaining.
This product is not available at this time.
Earn [points_amount] when you buy this item.
Description
Description
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.
Extra Heavy Duty Sprung Ceramic - 1R
Stage 2R Ceramic Motorsport upgrades are designed specifically for motorsport applications that require a higher torque capacity than the stage 2 equivalents. Each Stage 2R kit includes an Extra Heavy Duty pressure plate with even higher clamping force and a sprung ceramic friction disc.
These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.
Notes: Designed to suit SMF (Single Mass Flywheel) conversions only.
Technical Specifications
Technical Specifications
- Flywheel Step (mm): -9.53
- Clutch Disc Diameter (mm): 240
- Clutch Disc Spline Count: 24
- Clutch Disc Spline Diameter (mm): 26.4
- Disc Type: Sprung
- Friction Material: Ceramic
- Stage: 2R
- Recommended Use: Track
- Clamping Force % Increase: 40%
- Torque (Nm) Inc FOS: 910
- Torque (ftlbs) Inc FOS: 670
- Spigot Bush/Bearing Included: Yes
- Aligning Tool Included: Yes
- Spline Grease Included: Yes
- Transport Weight (kg): 7.1
- Note: Suits Converted SMF (Single Mass Flywheel)
