 |  SKU: KMI23014-1B

Xtreme Performance Sprung Ceramic Clutch Kit

Mitsubishi Evo 1-3/Galant VR-4 HH/GTO Z15A 6G72 95-01

$519.00

Earn [points_amount] when you buy this item.


Description

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Sprung Ceramic - 1B

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Recommended for: Recommended for Track (Motorsport) focused cars, or those who want the motorsport feel.

Features and Benefits

  • Heavy-duty pressure plate with 15-40% increased clamping force (depending on application)
  • Sprung ceramic friction disc for improved torque capacity, heat resistance and great driveability
  • Ideal for highly modified street vehicles or track focused vehicles
  • Includes all necessary components for easy installation

Technical Specifications

  • Clutch Spline Count: 20
  • Clutch Disc Spline Profile: 22.4x20T
  • Pilot Bearing Included: Yes
  • Spline Grease Included: Yes
  • Clutch Type: High-Performance Clutch
  • Flywheel Step (mm): 15.8
  • Max Recommended Engine Torque (Nm): 630
  • Clutch Disc Diameter (mm): 225
  • Flywheel Profile: Recessed Flywheel
  • Friction Material: Ceramic

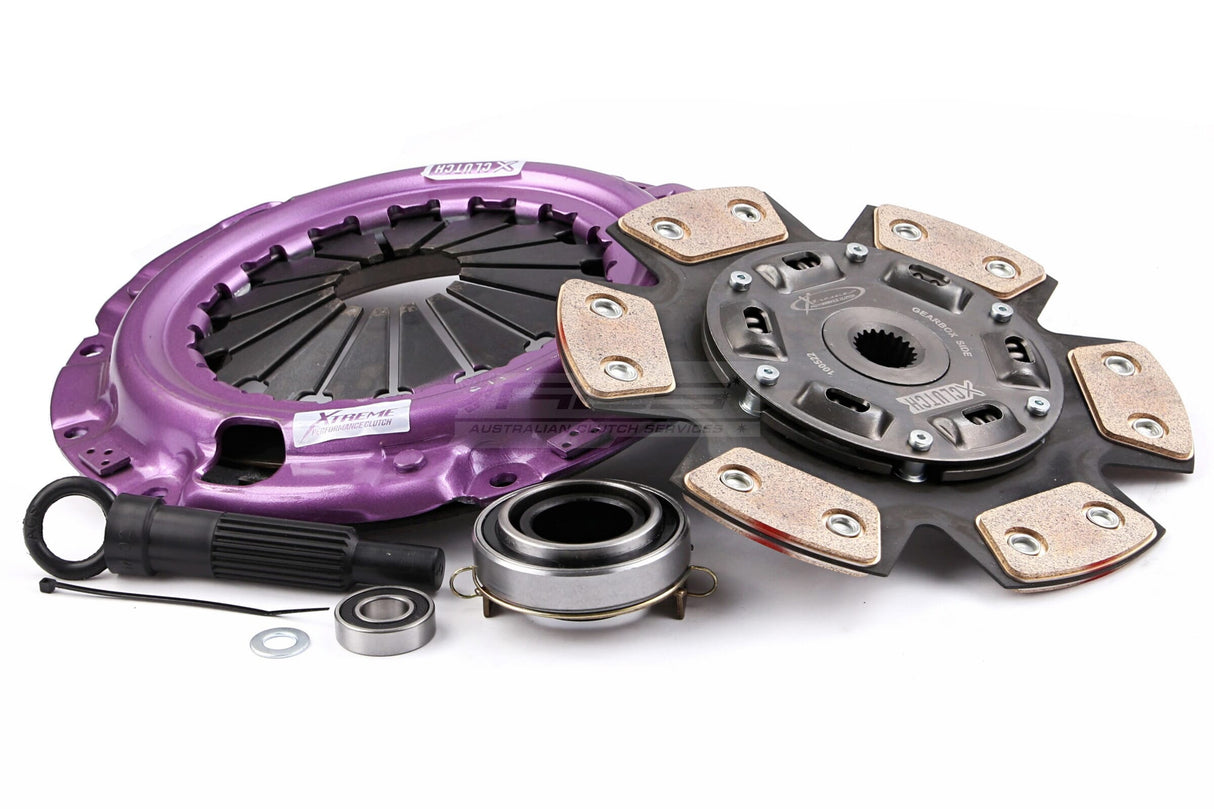

  • Included Components

    • Xtreme Performance Sprung Ceramic Clutch Disc
    • Xtreme Clutch Pressure Plate

    Fitment Table
