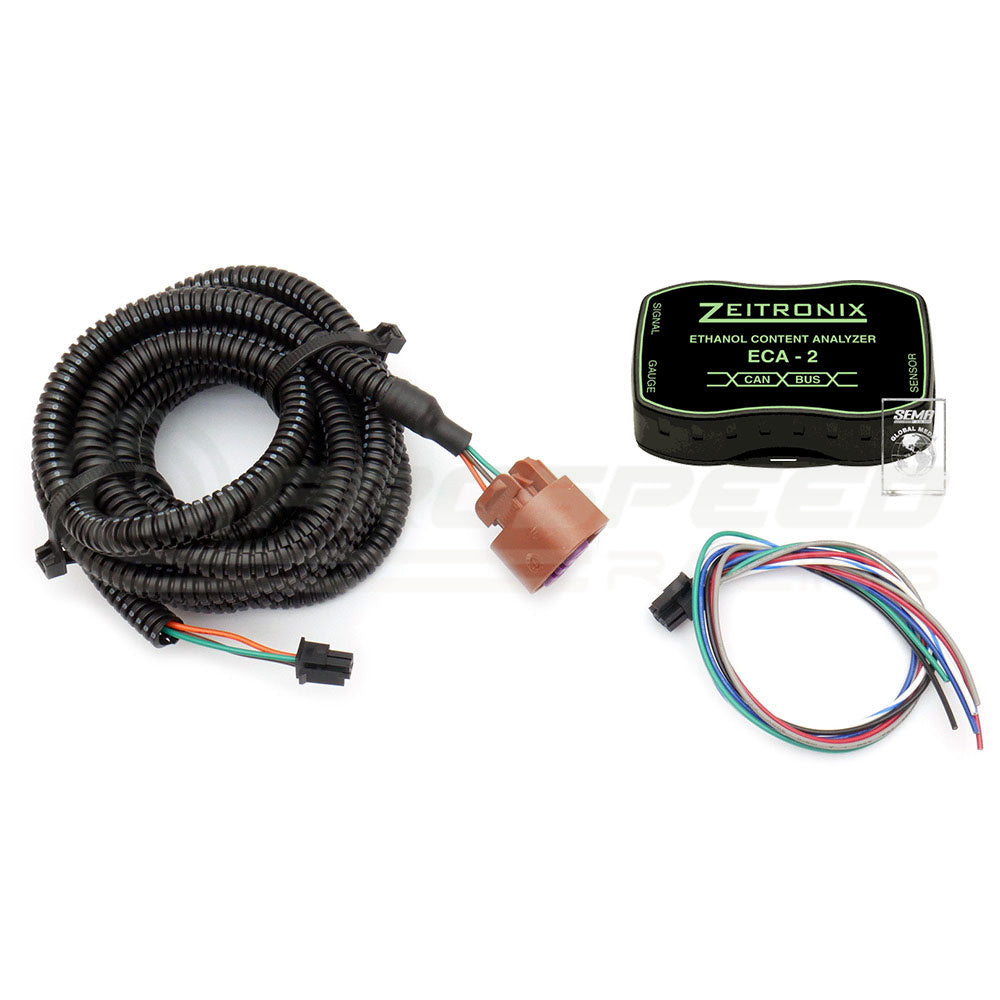

Zeitronix ECA 2 CAN Bus Ethanol Content Analyzer Only - No Sensor, No Gauge
In Stock:
This product is in stock & ready to be dispatched.
Limited Stock Available:
Stock is running low. Order soon to avoid missing out!
Almost Gone:
Stock is critically low! This product may sell out soon.
Incoming:
Product will be in stock soon.
Usually Ships In:
This product is out of stock and will usually ship in the timeframe displayed.
Sold Out:
This product is currently out of stock.
Request ETA
$499.00
Unit price /
Unavailable
Bidit helps you and Pro Speed Racing agree on a price. You set the price and Pro Speed Racing checks if they can accept your offer. You aren't competing with anyone else.
Note: No Sensor Included, No Gauge Included, Only Universal Wiring Included
New ECA with CAN Bus Communication:
The ECA CAN supports CAN Bus communication for easy connection and logging through other CAN Bus devices supporting a wide range of CAN Bus settings.
What's your ethanol percentage? The ethanol content of E85 fuel can vary from 60% to 92% ethanol. A fill up with E85 can drastically change the mix of fuel in your vehicle. For performance drivers determining actual ethanol content of E85 is essential to maximizing an engine tune and horsepower.
Why know your ethanol percentage? E85 has the equivalent octane rating of 105 or higher octane fuel. Higher octane fuel is more resistant to knock allowing for more aggressive ignition timing, higher compression and increased engine power over gasoline itself. The Zeitronix Ethanol Content Analyser helps you get the most out of your engine and fuel.
Features:
CAN Bus communication for easy connection and logging through other CAN Bus devices.
Two 0-5 V analog outputs: Ethanol % and Fuel Temperature for use with ECUs, data logging and engine management systems.
Connecting harness to Zeitronix Flow Through FLEX Fuel Sensor is included. Harness length is 8 ft (2.4m)
Optional real time E% Ethanol Content Gauge. The E% gauge is only 3/4" (19mm) thick. The back of the gauge is completely flat with cable hidden in a cavity and can be surface mounted almost anywhere inside the car cabin using a piece of Velcro or double sided tape. The E% Gauge base allows the gauge to be mounted in a standard 2” 1/16 (52mm) gauge pod. For additional mounting options the package includes 2 set screws and 2 nuts (4-40 screw size). Check out the gallery for gauge installation pictures. The E% Gauge plugs into the ECA-2 GAUGE port. Power and serial data is supplied directly through the single connection - there are no additional +12V or ground wires. The E% Gauge cable length is 5 ft (1.5m). ECA-2 is required for E% Gauge operation.
A flex fuel sensor is required. The ECA-2 is compatible with some OEM sensors used in GM vehicles with the flex fuel insignia or which run on E85. However GM offers a large number of different sensors with different specs. ECA-2 Kit which includes Zeitronix tested Flex Fuel Sensor
ECA-2 dimensions: 3" x 2" x 1" (76mm x 50mm x 25mm)
Made in the USA!
ECA-2 Analog Outputs Ethanol content and temperature analog outputs are available as part of the ECA-2. The flex fuel sensor does not provide these outputs. We have created the ECA-2 to provide these outputs making use of E-85 easier with after market engine control modules and data logging systems.
Analog Outputs
Signal
Range
Ethanol Percentage
0-5 Volts
0% to 100%
Fuel Temperature
0-5 Volts
-40 to 125 °C (-40 to 257 °F)
Ethanol % = 20 * Voltage
Fahrenheit Temp. = -40 + 59.4 * Voltage
Celsius Temp. = -40 + 33 * Voltage
Flex fuel Sensor Technical Specification:
Measuring range:
0…100% Alcohol (ethanol) in fuel mixtures
Sensor Accuracy:
5% of the mixture ratio
Output characteristic:
Linear
Operating temperature:
Environment -40°C… +125°C, Fuel -40°C… +90°C
Maximum fuel pressure:
10 bar, (145 psi)
Maximum pressure drop:
0.1 bar, (1.45 psi)
Maximum flow:
200 l/h
Supply voltage:
6…18 Volts DC
Sensor Temperature error:
< 1.5%
Response time:
< 250 ms after power on at any temperature
Design:
Suitable for the installation in motor vehicles, independent of position. Housing is waterproof. Always check for fuel leaks!
Supported CAN Bus Specifications:
User selectable CAN Bus Speed: 1Mbps, 500 Kbps, 250 Kbps, 125 Kbps
User selectable CAN Bus ID: Standard (11 bit) and Extended (29 bit)
User selectable CAN Bus address: Standard 0x0000 to 0x7FF / Extended 0x0000 to 0x7FFF
User selectable CAN Bus update rate: 1ms (1000Hz) to 250ms (4 Hz)
