| SKU:
ECA-2-SEN

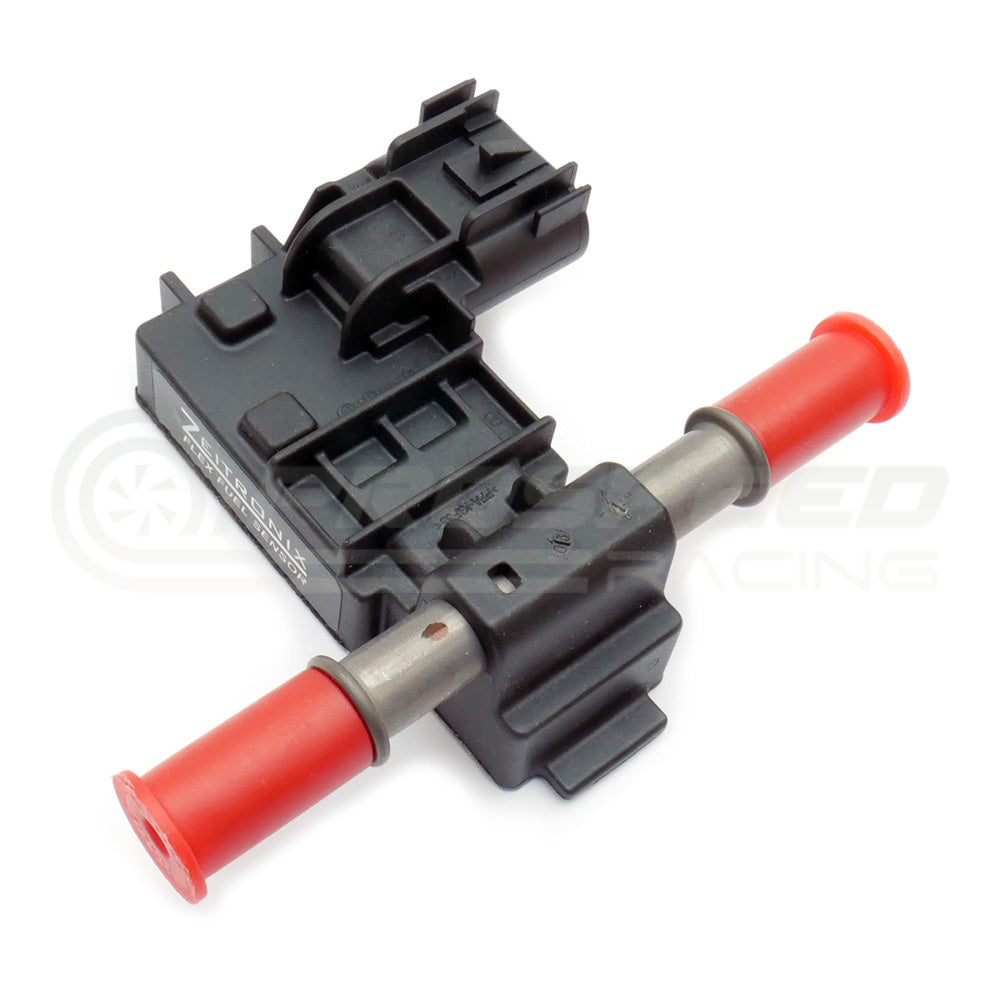

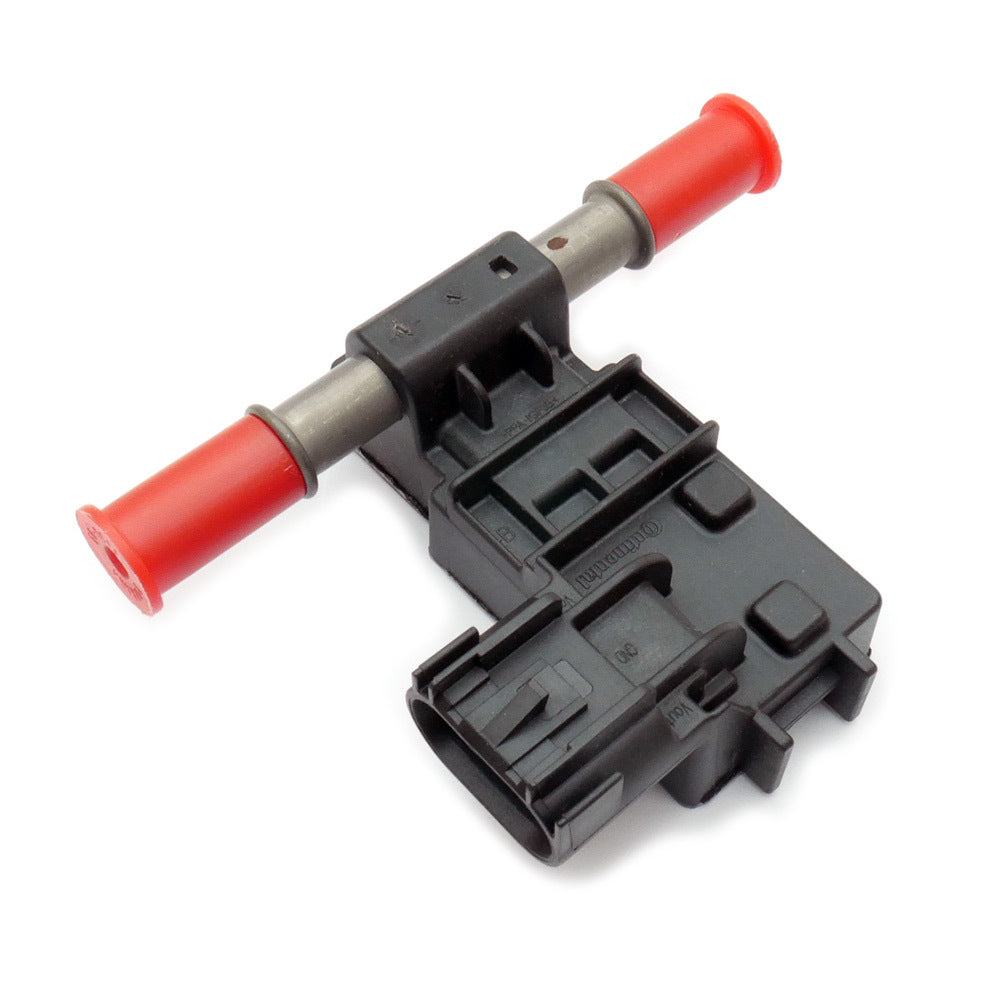

Zeitronix ECA Ethanol Content Analyzer Sensor Only
Earn [points_amount] when you buy this item.
-
International Shipping
We ship Worldwide
-
AUSSIE OWNED
-
FAST DISPATCH
-
WE PRICE MATCH
-
FLAT RATE SHIPPING
Description
Description
Note: Sensor Only. No Wiring, Gauge or ECA Analyser Included.
What's your ethanol percentage?
The ethanol content of E85 fuel can vary from 60% to 92% ethanol. A fill up with E85 can drastically change the mix of fuel in your vehicle. For performance drivers determining actual ethanol content of E85 is essential to maximizing an engine tune and horsepower.
Why know your ethanol percentage?
E85 has the equivalent octane rating of 105 or higher octane fuel. Higher octane fuel is more resistant to knock allowing for more aggressive ignition timing, higher compression and increased engine power over gasoline itself.
What are the sizes of the flex fuel sensor inflow and outflow lines?
Zeitronix Flow Through Flex Fuel Sensor both tubes are 0.37" and 0.5" at the flange. The usual mounting location for the sensor is the return fuel line. Make sure the sensor is filled completely with fuel.
A professional installation by a shop familiar with your vehicle and it's fuel system is required. Always check for fuel leaks!
Flex fuel Sensor Technical Specification:
| Measuring range: | 0…100% Alcohol (ethanol) in fuel mixtures |
| Sensor Accuracy: | 5% of the mixture ratio |
| Output characteristic: | Linear |
| Operating temperature: | Environment -40°C… +125°C, Fuel -40°C… +90°C |
| Maximum fuel pressure: | 10 bar, (145 psi) |
| Maximum pressure drop: | 0.1 bar, (1.45 psi) |
| Maximum flow: | 200 l/h |
| Supply voltage: | 6…18 Volts DC |
| Sensor Temperature error: | < 1.5% |
| Response time: | < 250 ms after power on at any temperature |
| Design: | Suitable for the installation in motor vehicles, independent of position. Housing is waterproof. Always check for fuel leaks! |
