 |  SKU: 20-0556-02

Radium Fuel Rail Kit - Nissan GT-R R35

Nissan GT-R R35
$692.00

Description

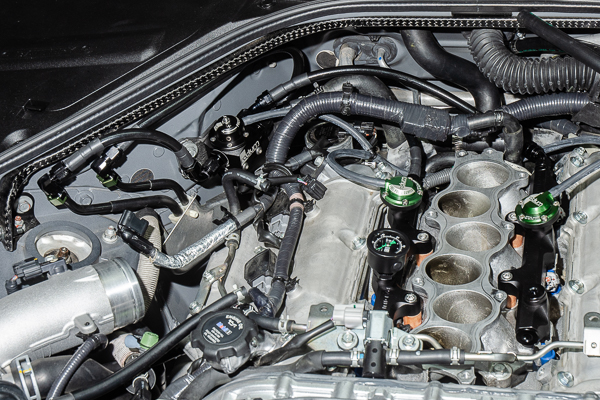

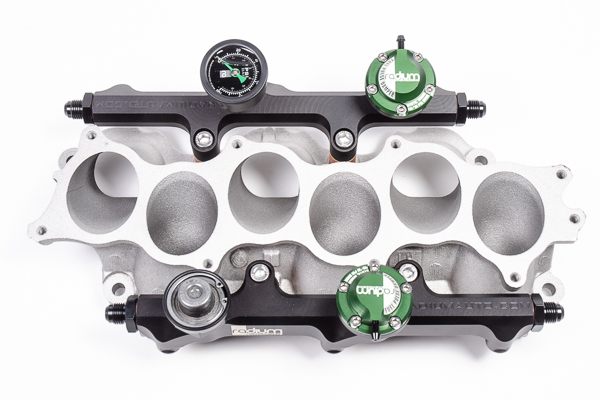

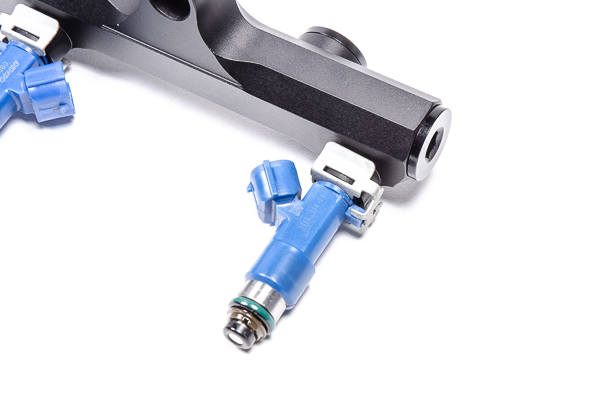

These Radium Engineering fuel rails are compatible with the VR38DETT engine found in the Nissan R35 GT-R. They are machined from 6061 aluminum and anodized black for compatibility with all popular fuel types including E85. Manufactured with a large internal bore, the fuel rail can support all necessary engine power requirements. Each rail has four 8AN ORB ports (2 end ports and 2 top ports for a total of 8 ports). The fuel rail features 14mm injector bores and is compatible with the OEM injectors and any aftermarket injectors with OEM VR38DETT fitment.

The fuel rails mount with phenolic spacers and washers for 100% fuel insulation from the hot intake manifold. The unique lower intake manifold mounting points permit shorter less restrictive rails. Additionally, the OEM injector clips can be reused. With 4 ports on each rail (8 total), it is easy to add fuel system accessories such as a pressure transducer, fuel pulse dampers, etc. There is also opportunity to plumb the fuel rails in parallel or series.

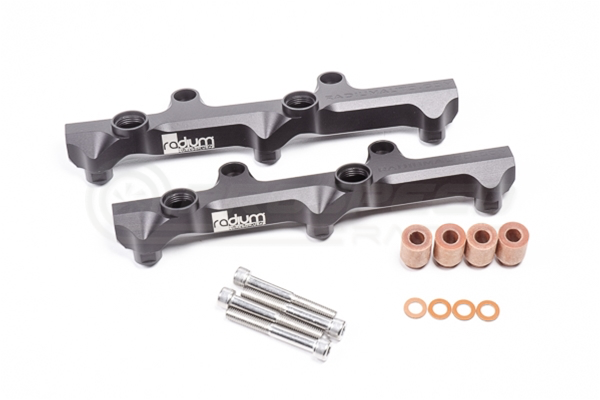

The base kit (P/N: 20-0556-02) includes ONLY the fuel rails and associated mounting hardware. NO FITTINGS ARE INCLUDED.





Fitment Table
