$474.00
Unit price /
Unavailable
Bidit helps you and Pro Speed Racing agree on a price. You set the price and Pro Speed Racing checks if they can accept your offer. You aren't competing with anyone else.

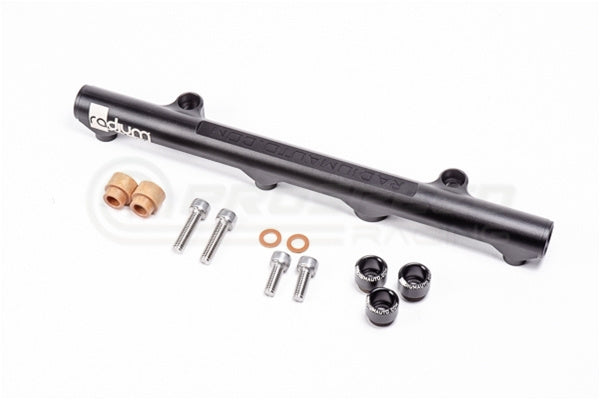

The Radium Engineering high flow secondary fuel rail is for the OEM lower intake manifold found on the Mazda 20B-REW rotary engine. The aluminum fuel rail is anodized black for compatibility with all popular fuel types including E85. Manufactured with a large internal bore, the fuel rail can support all necessary engine power requirements. The three 8AN ORB ports are featured on this fuel rail. The extra center port allows additional fuel system accessories such as the OEM fuel temperature sensor (using 14-0421), a pressure transducer, Radium fuel pulse damper, etc.

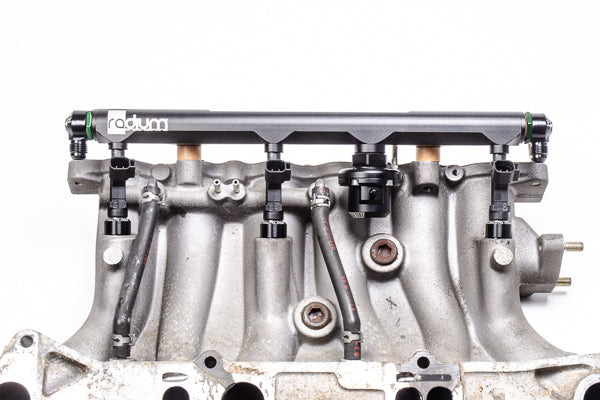

Like the stock fuel rail, the rail features 11mm injector bores permitting the use of OEM fuel injectors (shown below).

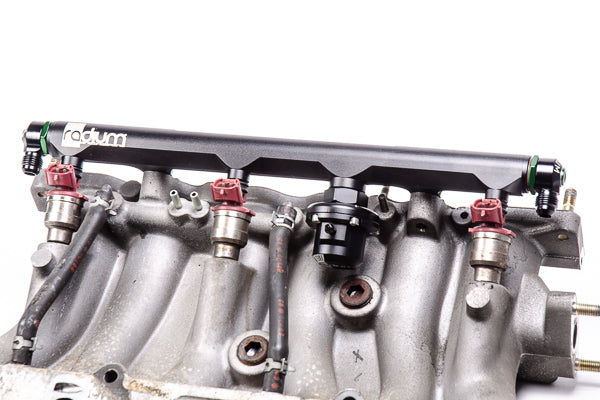

When the provided 14mm lower injector seats and insulating phenolic spacers are used, aftermarket Bosch EV14 style injectors can be used (shown below).
The injector seats were designed to be compatible with or without the OEM diffusers in place. They feature Viton O-rings making them suitable for boosted applications.
FUEL INJECTOR COMPATIBILITY
When the included phenolic spacers and injector seats are NOT installed:
OEM Mazda Top Feed Fuel Injectors
When the included phenolic spacers and injector seats are installed:
Step 1: Choose message placement
Click the button below and then hover over your page to select a placement.
Step 2: Paste and save
You have copied the placement for the Product Page.
Go back to the App Embeds section, and in the Paypal Advanced Settings, paste the copied value into the
Product Page field and click the 'Save' button in the top right corner.
| SKU:
20-0465
