 |  SKU: 1050.34.14.14.10

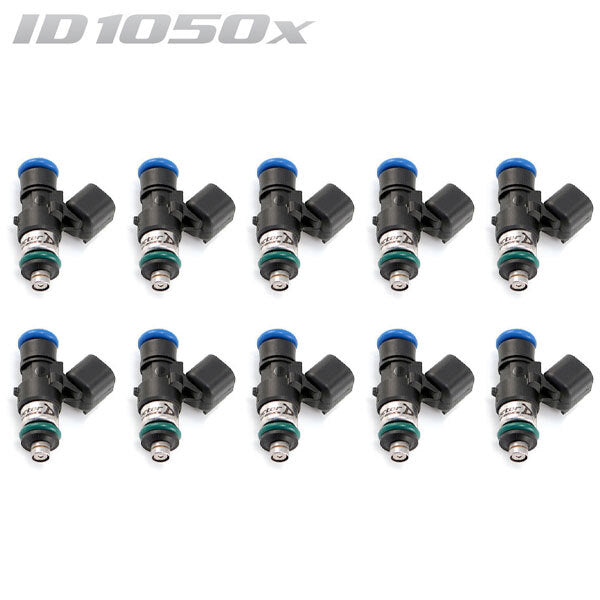

ID1050-XDS Injectors Set of 10, 34mm Length, 14mm Grey Adaptor Top, 14mm Lower O-ring

Lamborghini Huracan/Audi R8 (V10)
$2,209.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

This is a set of ten Injector Dynamics ID1050-XDS injectors in the 34mm short-body format, with a 14mm grey adaptor top and a 14mm lower O-ring. It is specified by dimensions rather than by vehicle, so it suits builds that need ten injectors and already have seats and rails sized to match. Ten injectors, one part number, no mixing and matching.

Pro Speed Racing holds the Main Wholesale Distributor role for Injector Dynamics across Australia and New Zealand. Other sizes and service parts sit in the Injector Dynamics range at Pro Speed Racing, one corner of a much wider catalogue of aftermarket car parts.

Set of ten at a glance

  • Part number 1050.34.14.14.10
  • Quantity: ten ID1050-XDS injectors

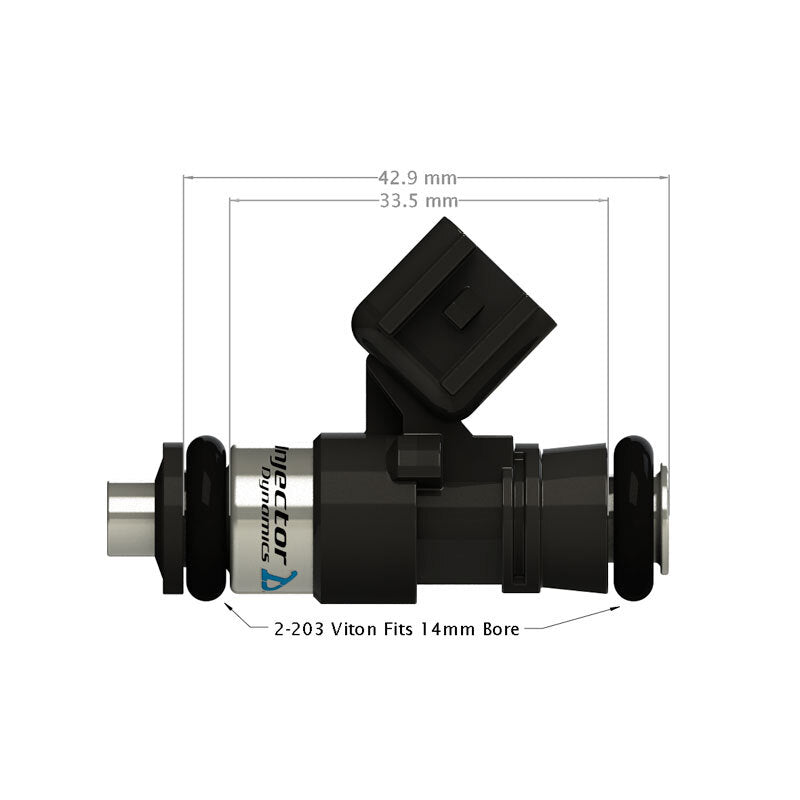

  • 34mm overall length
  • Top: 14mm grey adaptor
  • Lower: 14mm O-ring

Rated flow, maximum pressure and the connector type are listed under Technical Specifications below.

Where the ID1050-XDS sits

Injector Dynamics developed the ID1050-XDS with Bosch Motorsport as the next step on from the ID1000, carrying over what it learned building the ID1300 and ID1700. It is a motorsport injector made to its own specification, not a reworked production part. A revised internal flow path adds about 5% flow while keeping low-pulse control intact, and a stronger magnetic circuit keeps it stable right to the top of its pressure range.

Measure twice, order once

Because this set is sold by size, measure the length and O-rings on the injectors in your engine now, compare them with the list above, then confirm on the Vehicle Fitment tab. If your build needs a lot more fuel, the ID2600-XDS ten-pack in the same 34mm configuration is the biggest step up.

Technical Specifications

  • Nominal Flow Rate: 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
  • Maximum Differential Fuel Pressure: 10.0 Bar (145.0 psi)
  • Fuel Compatibility: Compatible With All Known Fuels
  • Electrical Connector: USCAR
