 |  SKU: 2600.34.14.14.10

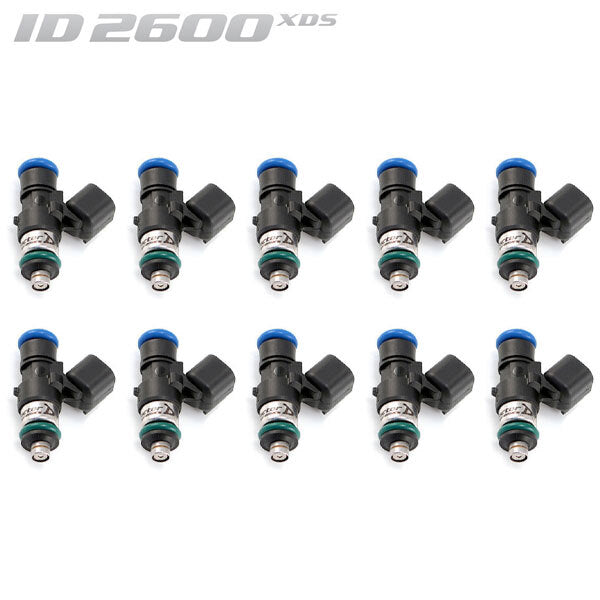

ID2600-XDS Injectors Set of 10, 34mm Length, 14mm Grey Adaptor Top, 14mm Lower O-ring

Lamborghini Huracan/Audi R8 (V10)
$5,824.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

With this set you get ten Injector Dynamics ID2600-XDS injectors in a 34mm body with a 14mm grey adaptor top and 14mm lower O-ring. They are intended for big-output engines on ethanol or methanol that need ten injectors and more flow than the smaller XDS sizes can deliver. Not a casual purchase, and not meant to be.

Every ID2600-XDS comes from Injector Dynamics. Pro Speed Racing supplies them as the brand's Main Wholesale Distributor in Australia and New Zealand, next to the rest of the Injector Dynamics products and a long list of other performance car parts.

Ten-injector fitment

  • Part number 2600.34.14.14.10
  • Quantity: ten per set

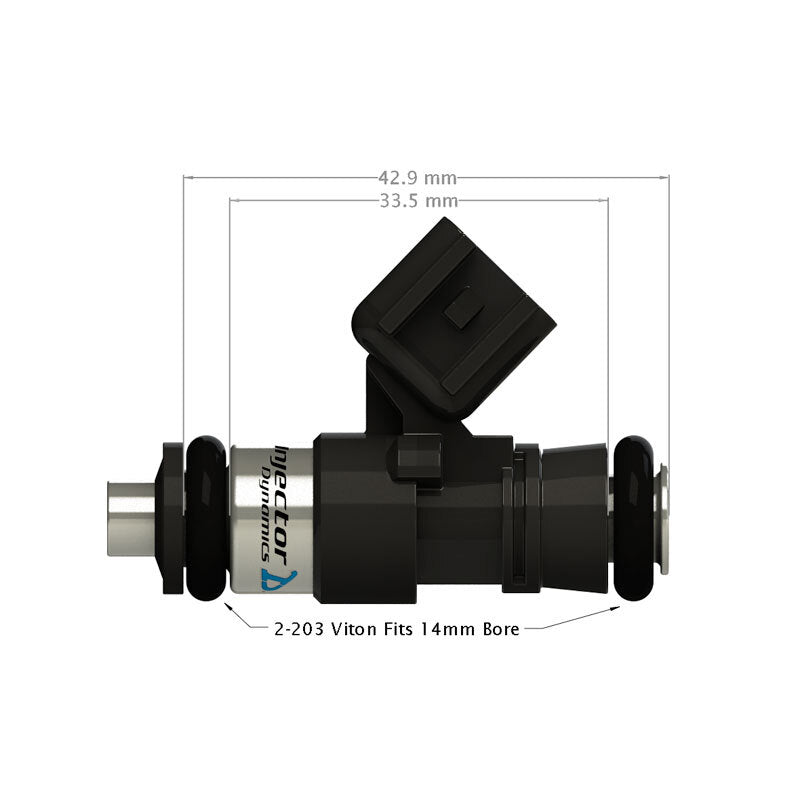

  • 34mm length
  • 14mm grey adaptor top
  • 14mm lower O-ring

You'll find the nominal flow, maximum fuel pressure and connector listed under Technical Specifications below.

Matched where it matters

According to Injector Dynamics, the ID2600-XDS has the highest flow rate of any injector Bosch offers, about 50% more than the ID1700. Injectors this large spend a lot of time at very short pulse widths, where flow is no longer linear, so each set is paired with Dual Slope Matching across both the linear and non-linear range. Injector Dynamics reports average deviation in the non-linear range dropping from +/-5.1% under Slope Intercept matching to +/-1.4%.

Sizing and fitment

Measure the injectors you are taking out and make sure the length and both O-ring sizes line up, then confirm on the Vehicle Fitment tab. If an ID2600 is more injector than your engine will use, the ID1300-XDS set of ten keeps more resolution at idle in the same dimensions.

Technical Specifications

  • Nominal Flow Rate: 2600cc/min @ 3.0 Bar (43.5 psi)
  • Maximum Differential Fuel Pressure: 9.0 Bar (130.5 psi) – Requires Minimum 11volt.
  • Fuel Compatibility: Compatible with Methanol/Ethanol/All Known Hydrocarbons. NOT Compatible with Ethers (MTBE, ETBE, TAME) or Nitro Methane
  • Electrical Connector: USCAR

Fitment Table
