 |  SKU: 1050.34.14.15

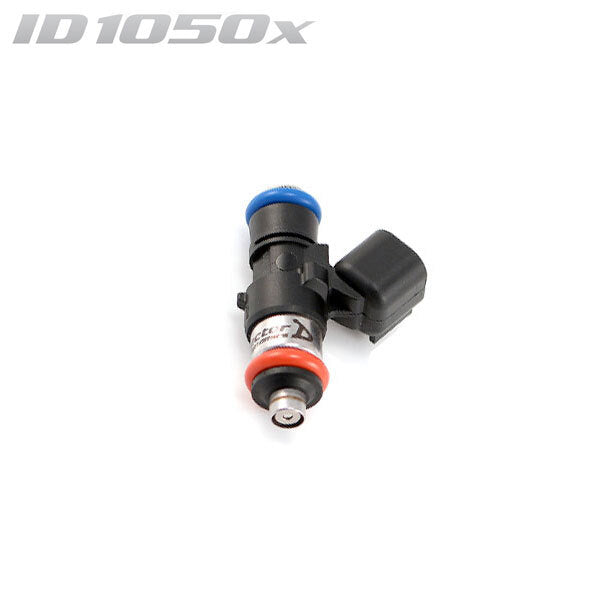

Injector Dynamics ID1050-XDS 34mm Single Injector w/14mm Top & 15mm Lower O-Ring

Universal
$239.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

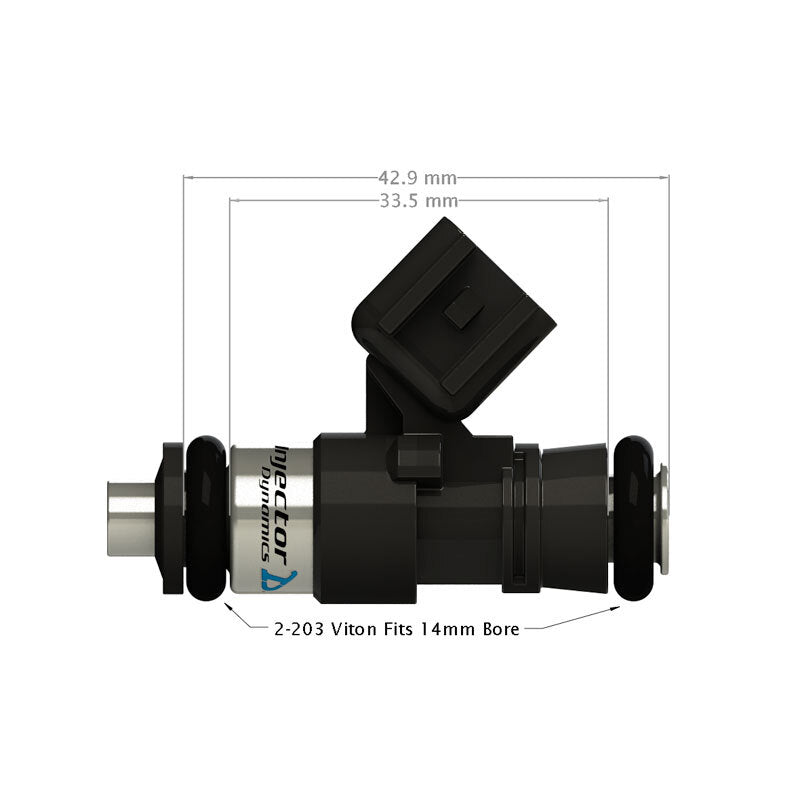

A single Injector Dynamics ID1050-XDS in the 34mm length, set up with a 14mm top O-ring and a larger 15mm lower O-ring for universal fitment. The 15mm lower is the detail that matters: it's for injector bores sized for that seal rather than a 14mm lower.

Pro Speed Racing serves Australia and New Zealand as the official Main Wholesale Distributor for Injector Dynamics. More single injectors and sets are in the Injector Dynamics section of the store, alongside Pro Speed's other aftermarket car parts.

Single 1050.34.14.15 specs

  • 1 x ID1050-XDS
  • 34mm length
  • 14mm top O-ring
  • 15mm lower O-ring

Head down to Technical Specifications for this injector's flow, pressure limit and connector.

Built by Injector Dynamics with Bosch Motorsport

The ID1050-XDS was the latest addition to the X-Series, developed with Bosch Motorsport from what Injector Dynamics learned building the ID1300 and ID1700. Highlights include a revised internal flow path for about 5% more output, a stronger magnetic circuit with stable operation up to its rated pressure, and a compact body that lets it fit 200+ applications. Corrosion-resistant internals handle every known fuel.

Matching the 15mm lower

Compare the length and O-ring sizes against the injector you're replacing and check the Vehicle Fitment tab, as some engines take more than one size. A millimetre is the difference between a seal and a leak here. If you need more fuel in this exact layout, the ID1300-XDS 34mm single with 14mm top and 15mm lower O-ring is the bigger-flow equivalent.

Technical Specifications

  • Nominal Flow Rate: 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
  • Maximum Differential Fuel Pressure: 10.0 Bar (145.0 psi)
  • Fuel Compatibility: Compatible With All Known Fuels
  • Electrical Connector: USCAR

Fitment Table
