 |  SKU: 1300.48.14.15

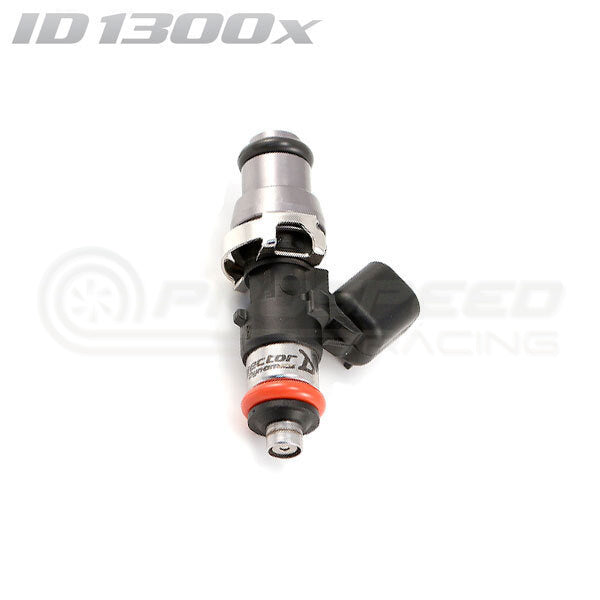

Injector Dynamics ID1300-XDS 48mm Single Injector w/14mm Grey Adaptor Top, 15mm Lower O-Ring

Universal
$404.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Any engine that takes a 48mm injector with a 15mm lower seal can use this universal Injector Dynamics ID1300-XDS single, which pairs a grey adaptor top (14mm O-ring) with a 15mm lower O-ring. It is sold one at a time for replacements, or for keeping a spare with your set.

Injector Dynamics makes it, and Pro Speed Racing sells it as the official Main Wholesale Distributor for Injector Dynamics in Australia and New Zealand. Other flow sizes are in the Injector Dynamics products list, and the rest of the store covers performance car parts well beyond injectors.

48mm grey-top details

  • Part 1300.48.14.15
  • Sold as one injector

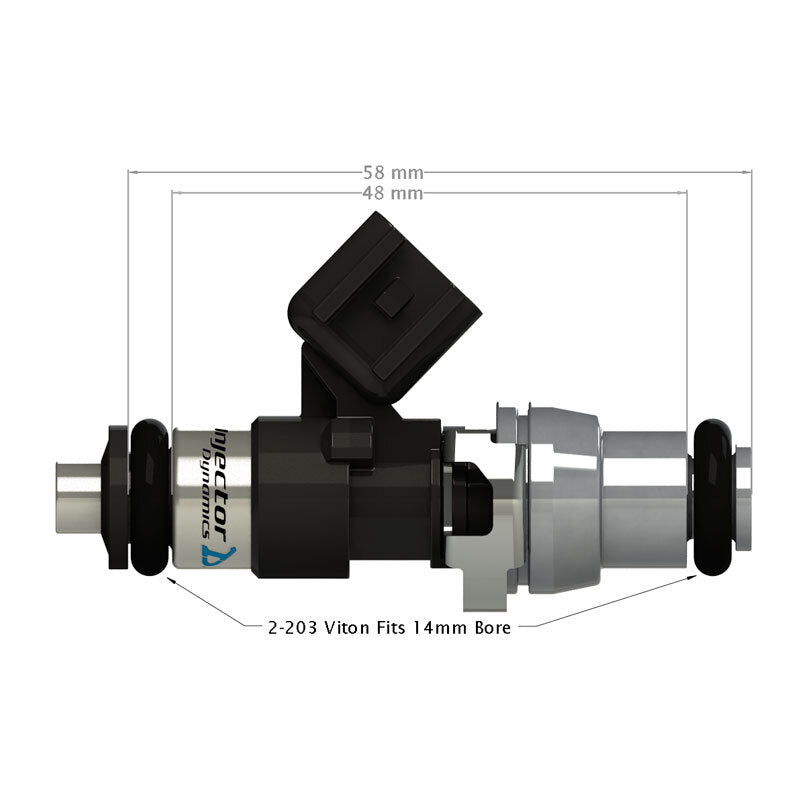

  • 48mm long
  • Grey adaptor top, 14mm O-ring
  • 15mm lower O-ring

The flow and pressure numbers, and the connector type, live in the Technical Specifications panel below.

Stainless internals for the long haul

Injector Dynamics specified all-stainless internals for the ID1300-XDS, something no other performance injector offered when it was released. The result is an injector rated for all known fuels and built to handle long exposure to alcohol. It also shares the compact body that Injector Dynamics says fits more than 200 applications.

Match the seals first

Compare the 48mm length and both O-ring sizes against what's fitted now. A 14mm lower won't do the same job as this 15mm one, so it's worth the quick check. Look at the Vehicle Fitment tab too. For a smaller flow size with these exact dimensions, there's the ID1050-XDS 48mm grey-top single with 15mm lower.

Technical Specifications

  • Nominal Flow Rate: 1335cc/min @ 3.0 Bar (43.5 psi) Using Iso Octane at 52 Degrees C (125 Degrees F)
  • Maximum Differential Fuel Pressure: 7.0 Bar (101.5 psi)
  • Fuel Compatibility: Compatible With All Known Fuels – (Designed Specifically for Alternative Fuels)
  • Electrical Connector: USCAR
