 |  SKU: 2600.34.14.14.2

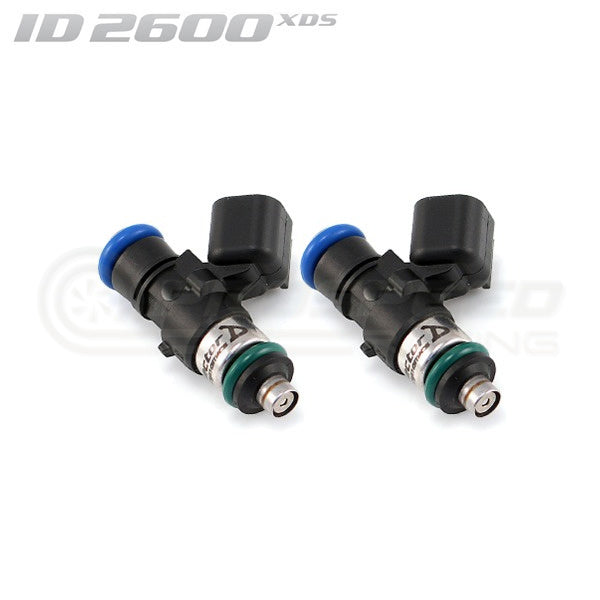

ID2600-XDS Injectors Set of 2 Direct Fit - Polaris XP 1000/XP 4 1000/Can Am Maverick Turbo

Polaris XP 1000/XP 4 1000/Can Am Maverick Turbo
$1,179.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Big numbers on ethanol or methanol in a Polaris XP 1000, XP 4 1000 or Can-Am Maverick Turbo call for this direct-fit set of two Injector Dynamics ID2600-XDS injectors in the 34mm size. Injector Dynamics developed it to handle those fuels long term.

Pro Speed Racing acts as the official Main Wholesale Distributor for Injector Dynamics in Australia and New Zealand. The Injector Dynamics collection has smaller sizes and spares, and Pro Speed's broader stock of performance parts picks up from there.

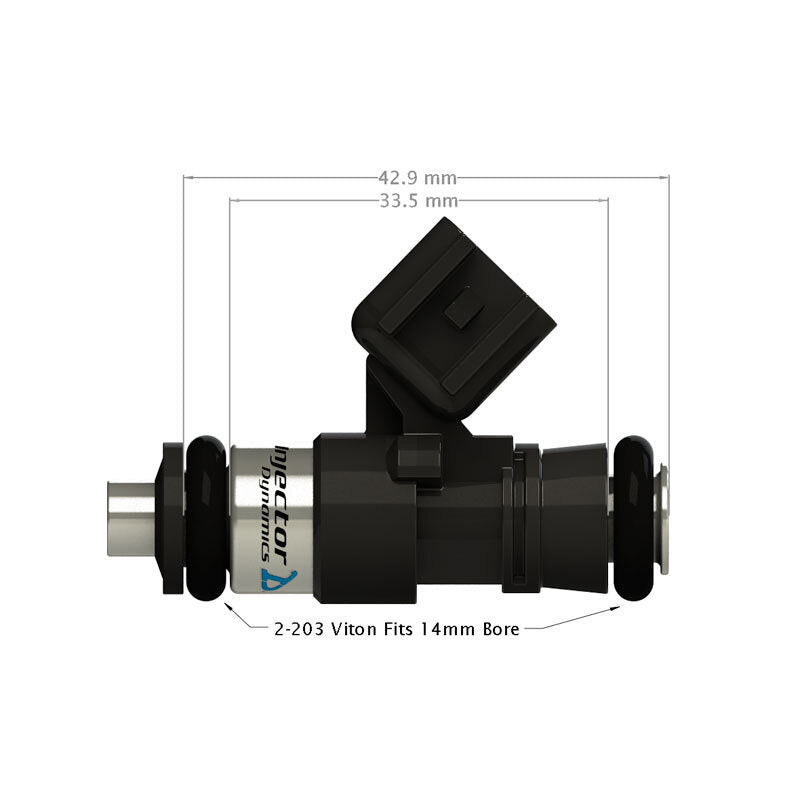

Fitment specs

  • Part number 2600.34.14.14.2
  • Two injectors
  • 34mm length
  • 14mm top O-ring
  • 14mm lower O-ring

Technical Specifications, below, covers flow rate, maximum pressure and the connector.

Why Dual Slope Matching matters

Matching injectors on static flow alone leaves large differences at short pulse widths. Injector Dynamics moved past that with Slope Intercept Matching in 2007, and the ID2600-XDS now uses Dual Slope Matching, which uses least squares linear regression to extend matching into the non-linear range. For the ID2600-XDS, Injector Dynamics quotes average deviation there improving from +/-5.1% to +/-1.4%.

Fitment check

Injector Dynamics lists the 2015 to 2017 Can-Am Maverick Turbo for this fitment. Compare the 34mm length and O-ring sizes with what is fitted and check the Vehicle Fitment tab. Lower targets are covered by the ID1300-XDS set of two and the ID1750-XDS pair for the XP 1000 and Maverick.

Technical Specifications

  • Nominal Flow Rate: 2600cc/min @ 3.0 Bar (43.5 psi)
  • Maximum Differential Fuel Pressure: 9.0 Bar (130.5 psi) – Requires Minimum 11volt.
  • Fuel Compatibility: Compatible with Methanol/Ethanol/All Known Hydrocarbons. NOT Compatible with Ethers (MTBE, ETBE, TAME) or Nitro Methane
  • Electrical Connector: USCAR

Fitment Table
