 |  SKU: SHE-045-200225BE

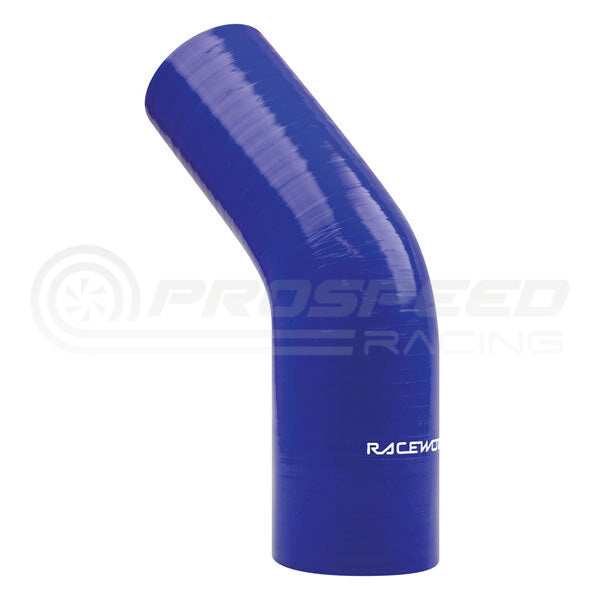

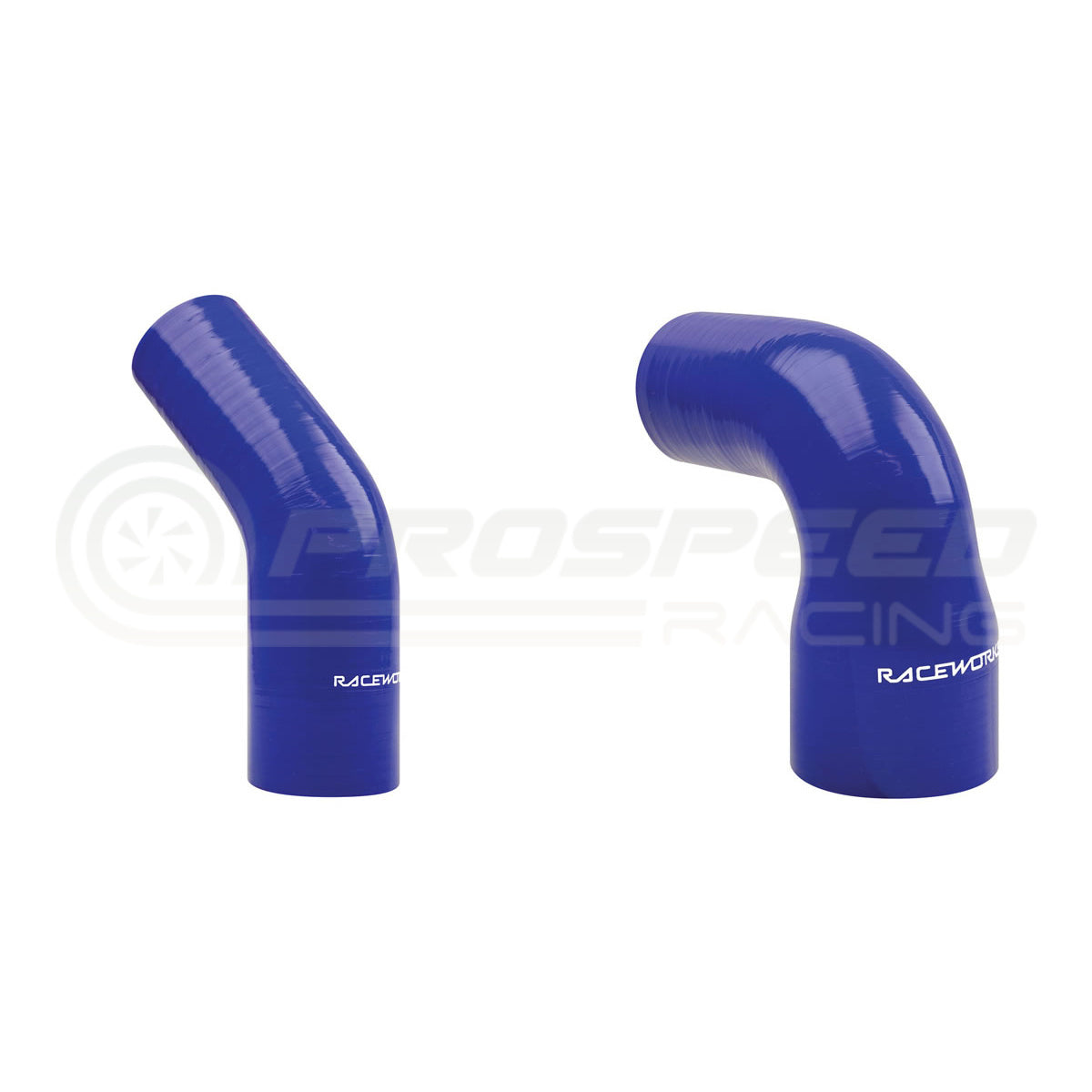

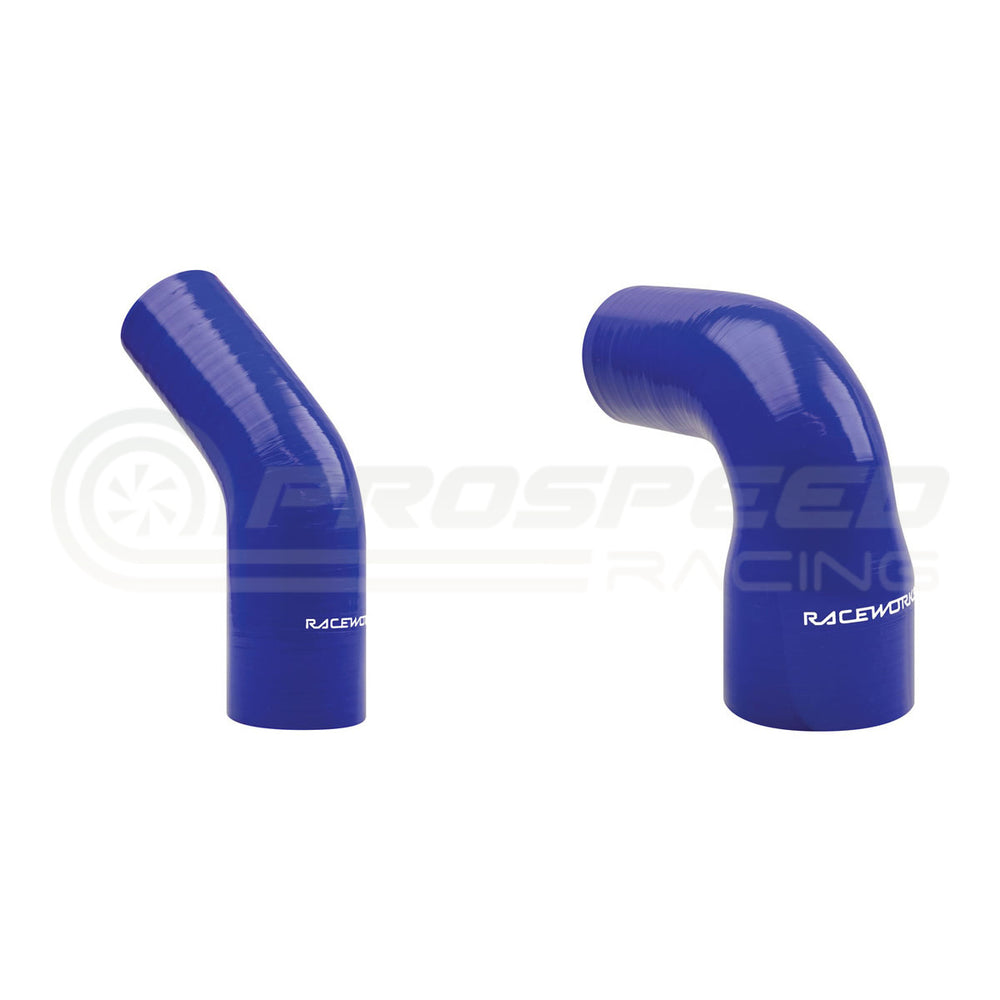

Raceworks Silicone Reducer Elbow Blue

$43.99
Angle: 45 Degree
Size
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description


Raceworks Silicone Hose is manufactured from the highest grade materials, to ensure that the strictest OEM and performance specifications are surpassed. All Hoses feature solid 5mm walls constructed from 4-ply reinforced silicone polyester, offering burst pressures of up to 348psi. All hoses are UV, ozone and electrochemically resistant to avoid fading and separation.

All Raceworks products come with a 2 year warranty.



Features:

  • Temperature Rating : –40 to +180°C
  • Raceworks Silicone Hose is not fuel safe
  • Solid 5mm walls constructed from 4-ply reinforced silicone polyester.



What is Centre Line Radius?

Centre Line Radius is the bend radius at the centre of the bend. Example below:



Specifications:

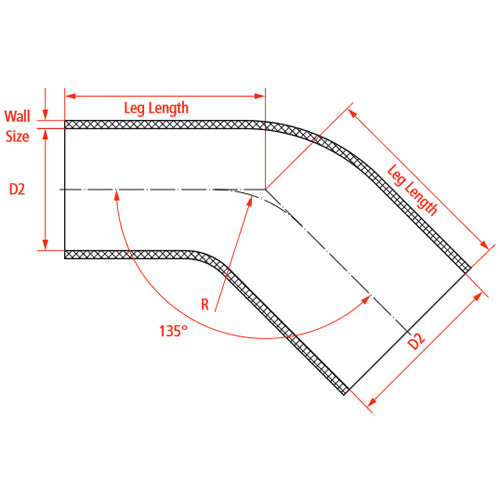

45 Degree Reducer Elbow

Dia. Imp. Dia. Metric Part # Blue Part # Black Lth mm Min. Burst Pres. Bend Radius
1.00? – 1.50? 25-38mm – SHE-045-100150BK 102x102mm 305 PSI 38mm
1.50? – 1.75? 38-44mm SHE-045-150175BE SHE-045-150175BK 125×125mm 305 PSI 38mm
1.50? – 2.00? 38-51mm – SHE-045-150200BK 125×125mm 305 PSI 38mm
2.00” – 2.25” 51-57mm SHE-045-200225BE SHE-045-200225BK 125×125mm 218 PSI 51mm
2.00” – 2.50” 51-63mm SHE-045-200250BE SHE-045-200250BK 125x125mm 218 PSI 51mm
2.00” – 3.00” 51-76mm SHE-045-200300BE SHE-045-200300BK 125x125mm 174 PSI 51mm
2.25” – 2.50” 57-63mm SHE-045-225250BE SHE-045-225250BK 125x125mm 174 PSI 57mm
2.50” – 2.75” 63-70mm SHE-045-250275BE SHE-045-250275BK 125x125mm 174 PSI 63mm
2.50” – 3.00” 63-76mm SHE-045-250300BE SHE-045-250300BK 125x125mm 174 PSI 63mm
2.75” – 3.00” 70-76mm SHE-045-275300BE SHE-045-275300BK 125x125mm 174 PSI 70mm
3.00” – 3.50” 76-89mm SHE-045-300350BE SHE-045-300350BK 125x125mm 145 PSI 76mm
3.00? – 3.75? 76-95mm – SHE-045-300375BK 152x152mm 145 PSI 76mm
3.00” – 4.00” 76-102mm – SHE-045-300400BK 152×152mm 145 PSI 76mm
3.50? – 3.75? 89-95mm – SHE-045-350375BK 152x152mm 145 PSI 89mm
3.50” – 4.00” 89-102mm SHE-045-350400BE SHE-045-350400BK 152×152mm 145 PSI 89mm
3.75? – 4.00? 95-102mm – SHE-045-375400BK 152x152mm 145 PSI 89mm
4.00? – 5.00? 102-127mm – SHE-045-400500BK 152x152mm 145 PSI 102mm

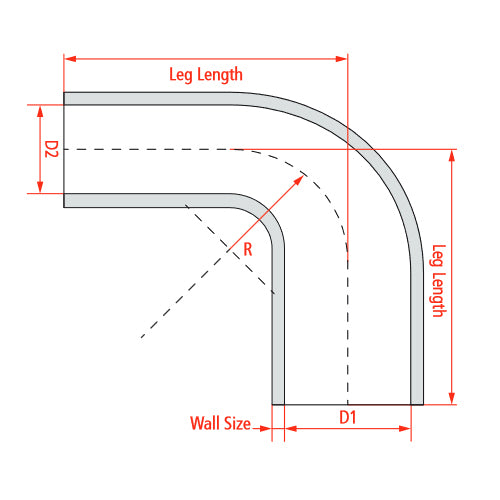

90 Degree Reducer Elbow

Dia. Imp. Dia. Metric Part # Blue Part # Black Lth mm Min. Burst Pres. Centre Line Radius
1.00? – 1.25? 25-32mm SHE-090-100125BE SHE-090-100125BK 125×125mm 305 PSI 60mm
1.00? – 1.50? 25-38mm SHE-090-100150BE SHE-090-100150BK 125×125mm 305 PSI 60mm
1.50? – 1.75? 38-44mm SHE-090-150175BE SHE-090-150175BK 125×125mm 305 PSI 60mm
1.50” – 2.00” 38-51mm SHE-090-150200BE SHE-090-150200BK 125×125mm 218 PSI 60mm
1.75” – 2.00” 44-51mm SHE-090-175200BE SHE-090-175200BK 125×125mm 218 PSI 60mm
2.00” – 2.25” 51-57mm – SHE-090-200225BK 125×125mm 218 PSI 60mm
2.00” – 2.50” 51-63mm SHE-090-200250BE SHE-090-200250BK 125x125mm 218 PSI 60mm
2.00” – 3.00” 51-76mm SHE-090-200300BE SHE-090-200300BK 125x125mm 174 PSI 60mm
2.25” – 2.50” 57-63mm – SHE-090-225250BK 125x125mm 174 PSI 60mm
2.25” – 2.75” 57-70mm SHE-090-225275BE SHE-090-225275BK 125×125mm 174 PSI 60mm
2.50? – 2.75? 63-70mm – SHE-090-250275BK 125x125mm 174 PSI 63mm
2.50” – 3.00” 63-76mm SHE-090-250300BE SHE-090-250300BK 125x125mm 174 PSI 63mm
2.75” – 3.00” 70-76mm SHE-090-275300BE SHE-090-275300BK 125x125mm 174 PSI 70mm
3.00” – 3.25” 76-83mm – SHE-090-300325BK 125x125mm 145 PSI 76mm
3.00” – 3.50” 76-89mm SHE-090-300350BE SHE-090-300350BK 145x145mm 145 PSI 76mm
3.00? – 3.75? 76-95mm – SHE-090-300375BK 145×145mm 145 PSI 76mm
3.00” – 4.00” 76-102mm SHE-090-300400BE SHE-090-300400BK 145x145mm 174 PSI 76mm
3.25” – 4.00” 83-102mm – SHE-090-325400BK 145x145mm 145 PSI 83mm
3.50? – 3.75? 89-95mm – SHE-090-350375BK 152×152mm 145 PSI 89mm
3.50” – 4.00” 89-102mm SHE-090-350400BE SHE-090-350400BK 145x145mm 145 PSI 89mm
4.00” – 5.00” 102-127mm – SHE-090-400500BK 145x145mm 145 PSI 102mm


Fitment Table
