 |  SKU: 1050.34.14.14.4

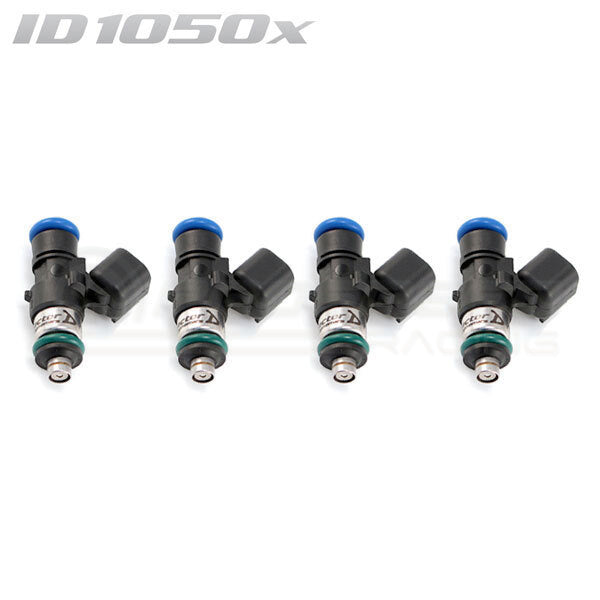

ID1050-XDS Injectors Set of 4, 34mm Length, 14mm Top O-Ring, 14mm Lower O-Ring

Universal
$884.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Four Injector Dynamics ID1050-XDS injectors with a 34mm body, 14mm top O-ring and 14mm lower O-ring make up this universal set. It suits four-cylinder engines that use short-body injectors, whether your build runs petrol now or ethanol blends later.

Pro Speed Racing distributes Injector Dynamics in Australia and New Zealand as the brand's official Main Wholesale Distributor. Other lengths and flow sizes are in the Injector Dynamics shop, part of Pro Speed's range of performance car parts.

Four-pack details

  • Part number 1050.34.14.14.4
  • 4 x ID1050-XDS

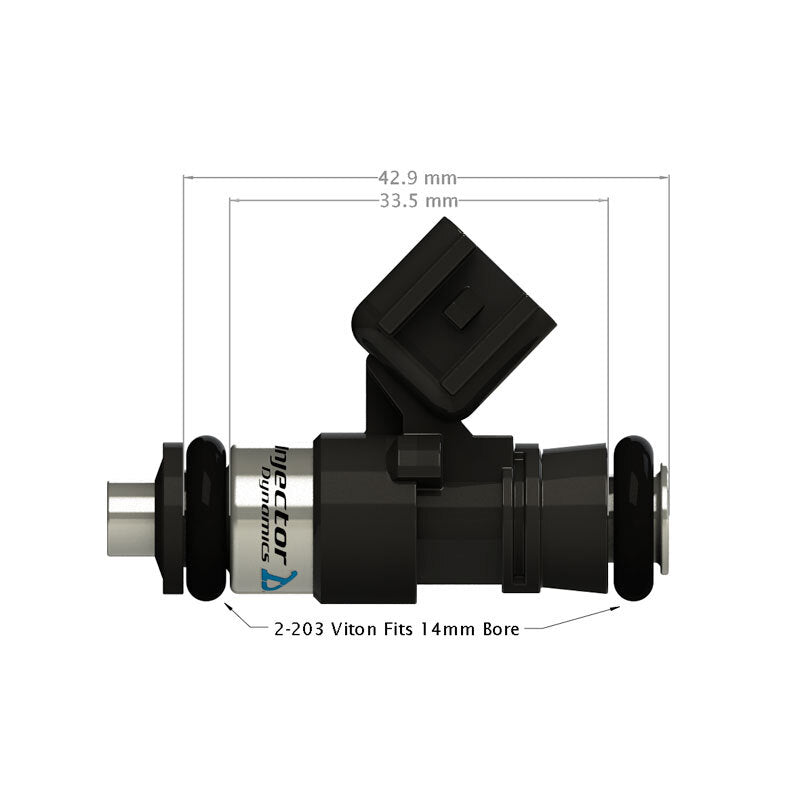

  • 34mm long
  • 14mm top and lower O-rings

The numbers your tuner needs (flow, pressure, connector) are in Technical Specifications below.

A motorsport injector from the start

The ID1050-XDS isn't a reworked production part. Injector Dynamics designed it with Bosch Motorsport as a built-to-spec motorsport injector, using lessons from the ID1300 and ID1700. For a four-cylinder tune, that brings a stronger magnetic circuit good for stable running up to its rated pressure, an improved internal flow path that adds about 5% output without losing low-pulse control, and an inlet filter that can be swapped out to extend service life.

Fit first, then order

Hold one of your current injectors against the length and O-ring sizes listed, and check the Vehicle Fitment tab, as some engines accept more than one size. If the build is headed for a lot more fuel, there's an ID2600-XDS 34mm set of four with the same 14mm O-rings. Spares come as a single 34mm ID1050-XDS. Four cylinders, four injectors, sorted.

Technical Specifications

  • Nominal Flow Rate: 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
  • Maximum Differential Fuel Pressure: 10.0 Bar (145.0 psi)
  • Fuel Compatibility: Compatible With All Known Fuels
  • Electrical Connector: USCAR
